ALSO OPERATES AS LDO REGULATOR AT 1.8V, 2.8V; PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Nom:
1.2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2847 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS650001RTER Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS650001RTER datasheet, but it's also important to follow general PCB design guidelines for switching regulators, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific application requirements, such as the output current, switching frequency, and output voltage ripple. Texas Instruments provides a list of recommended inductors in the datasheet, but engineers can also use online inductor selection tools or consult with inductor manufacturers to find the best option.
The maximum ambient temperature for the TPS650001RTER is 85°C, but the device can operate up to 125°C with derating. Engineers should ensure that the device is properly cooled and that the thermal design is adequate for the specific application.
Yes, the TPS650001RTER is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, engineers should ensure that the device is properly qualified and validated for their specific application, and that it meets all relevant safety and reliability standards.
Troubleshooting issues with the TPS650001RTER typically involves checking the input and output voltages, the inductor current, and the device's thermal performance. Engineers can use oscilloscopes, current probes, and thermal imaging cameras to diagnose issues, and should consult the datasheet and application notes for guidance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS650001RTER Overview

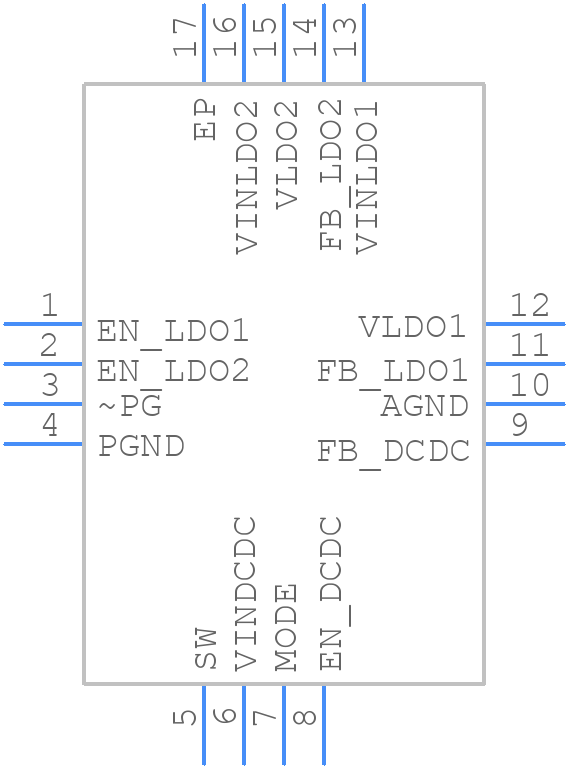

Use the download button to access the TPS650001RTER schematic symbol, PCB footprint, and 3D model.
