ALSO OPERATES AS LDO REGULATOR; ADJUSTABLE MODE FROM 0.6V TO 6V; PFM CONTROL TECH
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Max:
6 V
Output Voltage-Min:
0.6 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2847 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS65000RTET Frequently Asked Questions (FAQs)
The recommended layout and placement for the TPS65000RTET involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the performance of the TPS65000RTET, ensure that the input voltage is within the recommended range, use a sufficient input capacitor, and optimize the output capacitor selection. Additionally, minimize the trace length and width to reduce parasitic inductance and resistance.
The TPS65000RTET has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The device can operate up to 125°C, but the junction temperature should be kept below 115°C for optimal performance and reliability.
To troubleshoot issues with the TPS65000RTET, start by verifying the input voltage and current, and checking for proper output voltage regulation. Use an oscilloscope to check for noise and ripple on the output, and ensure that the device is properly soldered and connected.
The TPS65000RTET is designed to meet EMI and EMC standards, but proper PCB layout and design are still crucial. Use a shielded inductor, keep the switching node away from sensitive circuits, and use a common-mode choke to reduce EMI emissions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS65000RTET Overview

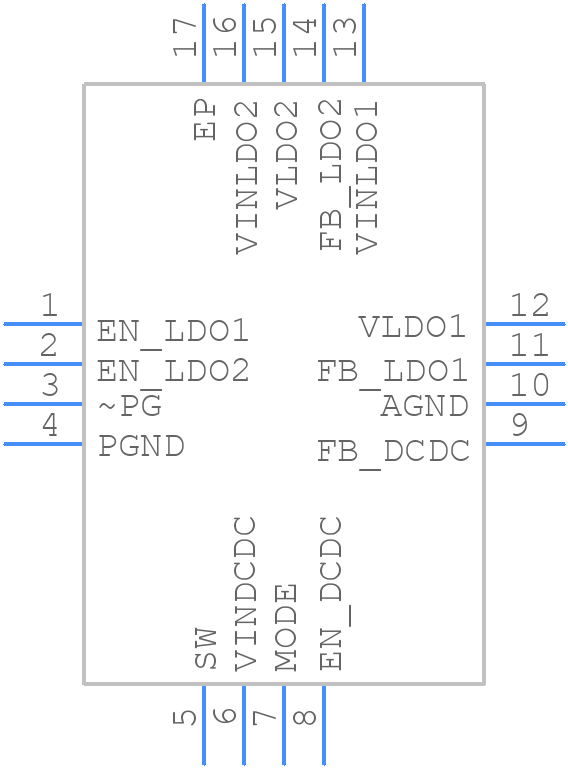

Use the download button to access the TPS65000RTET schematic symbol, PCB footprint, and 3D model.
