Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure stability, follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
Although the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the maximum voltage rating of the internal LDO regulator, which is 6V. However, it's recommended to keep the input voltage below 5.5V to ensure reliable operation and prevent damage to the IC.
The TPS65124RGTR is rated for operation up to 125°C (TJ), but it's crucial to consider the thermal design and ensure proper heat dissipation. Use a suitable thermal pad, and follow the recommended layout and thermal management guidelines to prevent overheating and ensure reliable operation.
The output voltage of the TPS65124RGTR is adjustable using the FB pin and an external resistor divider network. Use the formula provided in the datasheet to calculate the output voltage: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65124RGTR Overview

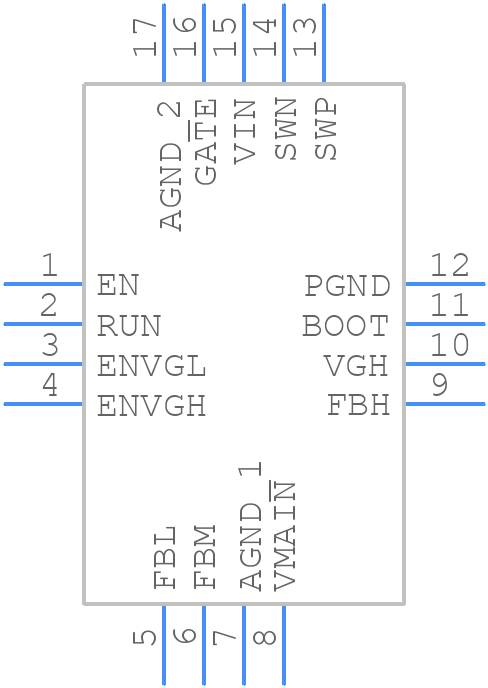

Use the download button to access the TPS65124RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
