A good PCB layout is crucial for the TPS65132B2YFFR. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the input and output capacitors to the ground plane. Additionally, keep the input and output traces short and away from each other to minimize noise and EMI.
The choice of input and output capacitors depends on the specific application and requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. X5R or X7R ceramic capacitors are good options. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
The maximum output current of the TPS65132B2YFFR is 2A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the power dissipation and thermal performance of the device in the specific application.
The TPS65132B2YFFR has a built-in overcurrent protection feature that limits the output current to 3.5A. However, if additional overcurrent protection is required, an external current sense resistor can be used to monitor the output current. The sense resistor can be connected to a comparator or a microcontroller to implement overcurrent protection.
The recommended input voltage range for the TPS65132B2YFFR is 2.7V to 5.5V. Operating the device outside this range may affect its performance, efficiency, and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65132B2YFFR Overview

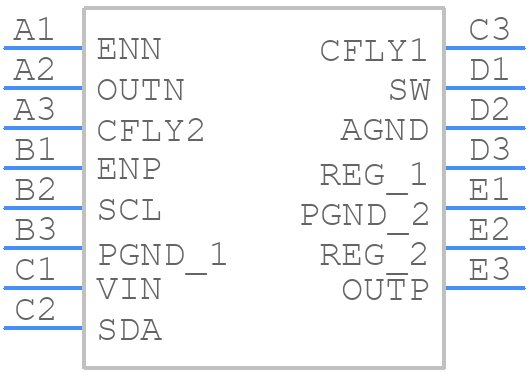

Use the download button to access the TPS65132B2YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
