TPS65132T6YFFR - Texas Instruments

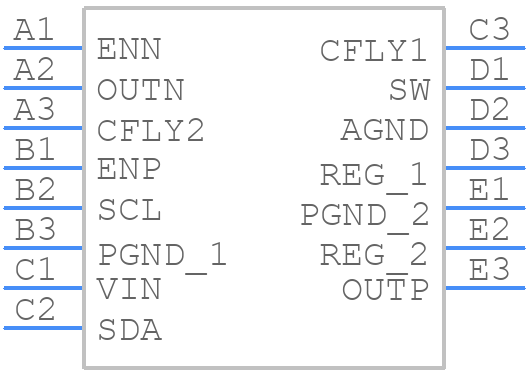

TPS65132T6YFFR Details

• Manufacturer Part Number:

  TPS65132T6YFFR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

• Pin Count:

  15

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO -5.6 NEGATIVE VOUT AVAILABLE

• Analog IC - Other Type:

  TFT LCD POWER SUPPLY MODULE

• Efficiency (Main Output):

  90%

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.5 V

• Input Voltage-Nom:

  3.7 V

• JESD-30 Code:

  R-XBGA-B15

• JESD-609 Code:

  e1

• Length:

  2.108 mm

• Line Regulation-Max:

  0.00015%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  15

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.08 A

• Output Voltage-Max:

  6 V

• Output Voltage-Min:

  4 V

• Output Voltage-Nom:

  5.6 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA15,3X5,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Protections:

  UNDER VOLTAGE LOCKOUT; THERMAL

• Seated Height-Max:

  0.625 mm

• Surface Mount:

  YES

• Switching Frequency-Max:

  2250 kHz

• Technology:

  HYBRID

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  0.448 W

• Trim/Adjustable Output:

  YES

• Width:

  1.514 mm
