TPS65140IPWPRQ1 - Texas Instruments

Description: Automotive 2.7V to 5.8V, 4 Channel LCD Power Supply

Download TPS65140IPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

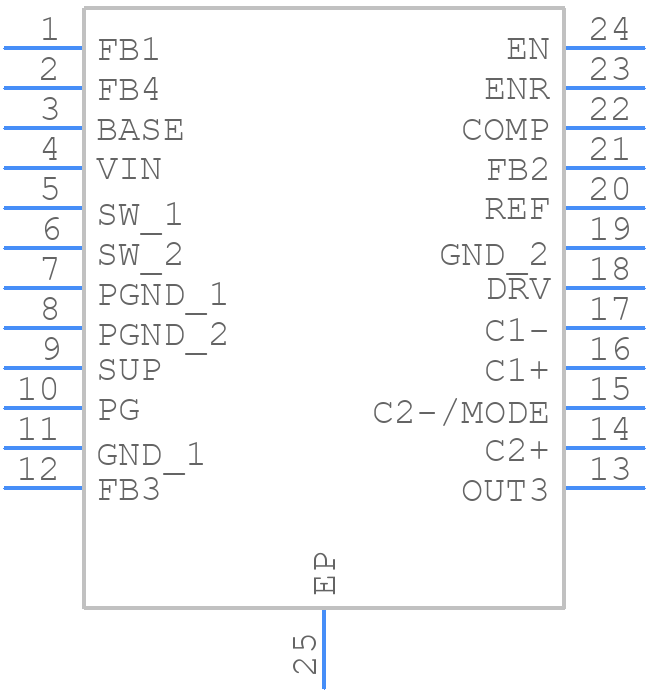

TPS65140IPWPRQ1 - Texas Instruments - PCB symbol
