TPS65142RTGR - Texas Instruments

Description: LCD Bias Solution For LCD Panels with 6ch WLED Driver

Download TPS65142RTGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

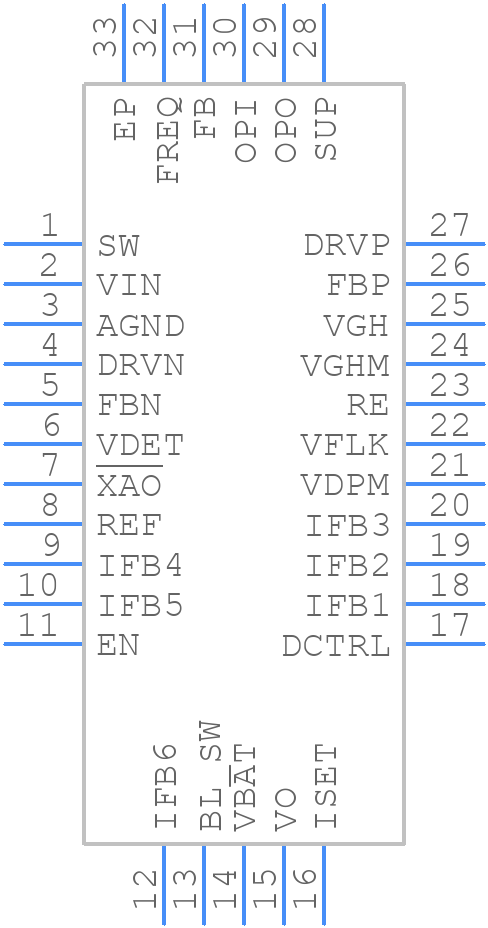

Symbol
TPS65142RTGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65142RTGR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS65142RTGR
click to zoom
3D Models
TPS65142RTGR - Texas Instruments - 3D model - Quad Flat No-Lead - TPS65142RTGR
click to zoom

TPS65142RTGR Details

  • Manufacturer Part Number:

    TPS65142RTGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.12X.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    16.5 V

  • Supply Voltage1-Min:

    7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS65142RTGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65142RTGR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and an ESR of less than 1 ohm. For output capacitors, choose ones with a voltage rating of at least 1.5 times the output voltage, and an ESR of less than 0.1 ohm. X5R or X7R ceramic capacitors are recommended.
  • The TPS65142RTGR can operate in an ambient temperature range of -40°C to 85°C. However, the device's junction temperature should not exceed 125°C.
  • The output voltage of the TPS65142RTGR can be calculated using the formula: VOUT = 0.8V x (1 + RFBT/RFB) + VREF, where RFBT and RFB are the feedback resistors, and VREF is the internal reference voltage (0.8V).
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
