ALSO CONTAINS BUCK REULATOR; ALSO HAS OUTPUT VOLTAGE RANGE UP TO 20 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
14 V
Input Voltage-Min:
9.2 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e4
Length:
9.7 mm
Moisture Sensitivity Level:
2
Negative Input Voltage-Max:
-2 V
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4.2 A
Output Voltage-Max:
17.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP28,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
2 mA
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
900 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS65160APWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the output current, switching frequency, and output voltage. TI provides an inductor selection guide in the datasheet, and online tools such as the TI Inductor Selection Tool can also be used to find a suitable inductor.
The TPS65160APWPR has a maximum ambient operating temperature of 85°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.
Yes, the TPS65160APWPR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with TI's application engineers to ensure that the device meets the specific requirements of the application.
TI provides a troubleshooting guide in the datasheet, and online resources such as the TI E2E forum can also be used to find solutions to common issues. It's also recommended to consult with TI's application engineers for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65160APWPR Overview

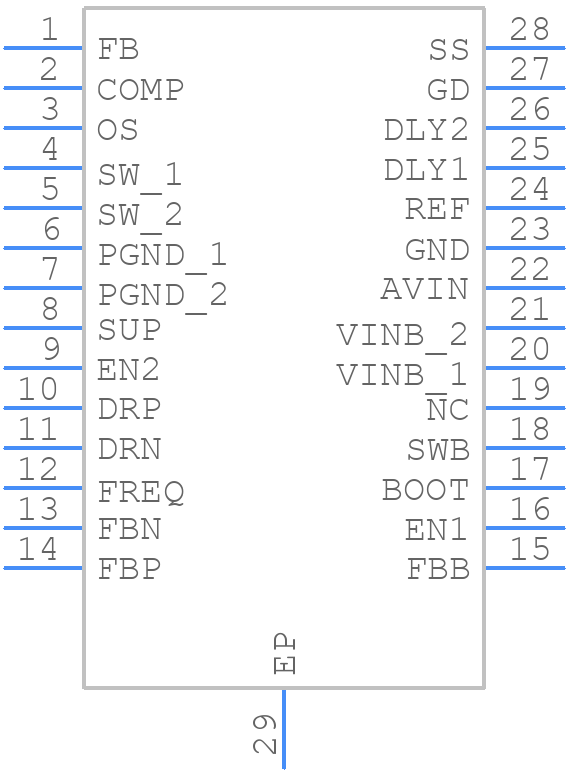

Use the download button to access the TPS65160APWPR schematic symbol, PCB footprint, and 3D model.
