ALSO OPERATES IN ADJUSTABLE MODE FROM 9.6V TO 18.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Input Voltage-Max:
14.7 V
Input Voltage-Min:
8.6 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N48
JESD-609 Code:
e4
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4.2 A
Output Voltage-Max:
18.5 V
Output Voltage-Min:
13 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.27SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
15 mA
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
900 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TPS65163RGZR Frequently Asked Questions (FAQs)
TI provides a recommended PCB layout in the datasheet (Figure 23) and in the TPS65163RGZR Evaluation Module documentation. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF. A higher capacitance can be used for improved ripple rejection and transient response.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the internal regulator.
To ensure proper power-up and power-down, TI recommends using a soft-start circuit and a power-good signal. The soft-start circuit helps to reduce inrush current, while the power-good signal indicates when the output voltage is within regulation.
The thermal derating is specified in the datasheet (Figure 26). To calculate the thermal derating, use the formula: P_D = (T_J - T_A) / R_θJA, where P_D is the derated power, T_J is the junction temperature, T_A is the ambient temperature, and R_θJA is the thermal resistance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS65163RGZR Overview

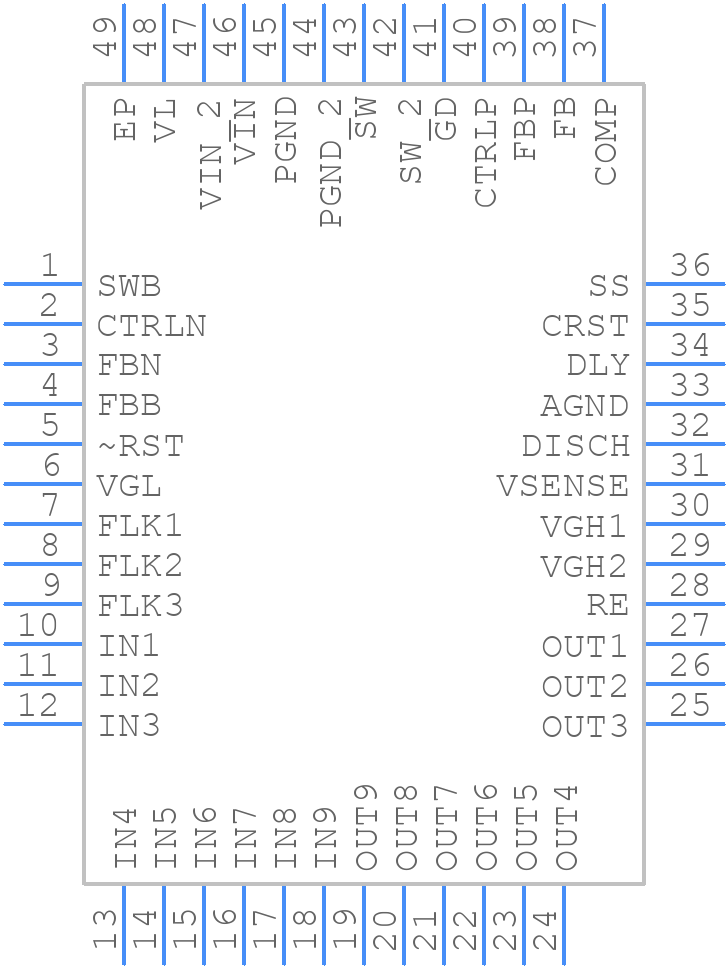

Use the download button to access the TPS65163RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
