A good PCB layout for the TPS65165RSBR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS65165RSBR output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
The TPS65165RSBR can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
The TPS65165RSBR is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
To troubleshoot issues with the TPS65165RSBR, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to measure the output voltage ripple and noise. Also, ensure that the PCB layout and component selection meet the recommended guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65165RSBR Overview

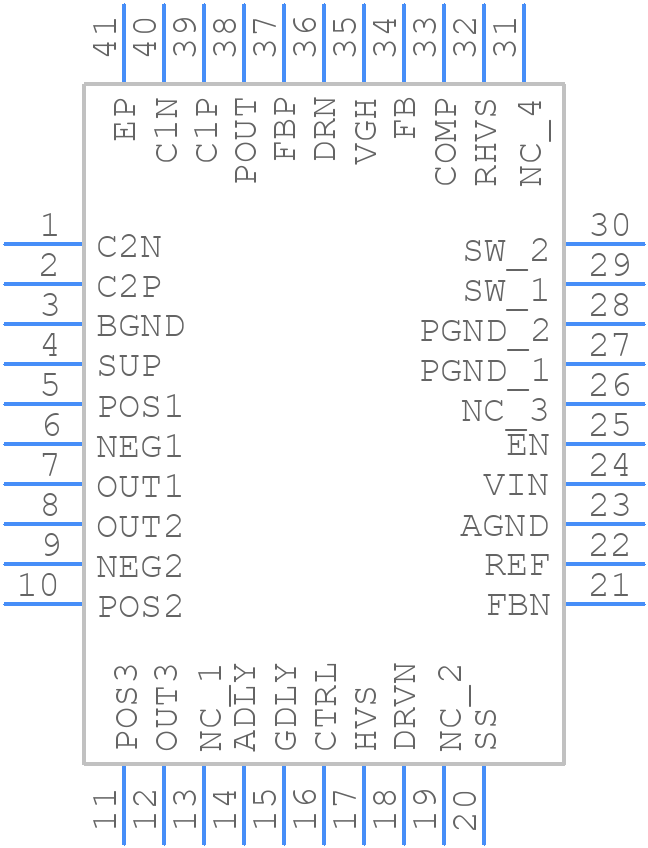

Use the download button to access the TPS65165RSBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
