ALSO OPERATES IN ADJUSTABLE MODE FROM 9.6V TO 18.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Input Voltage-Max:
14.7 V
Input Voltage-Min:
8.6 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N28
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4.2 A
Output Voltage-Max:
18.5 V
Output Voltage-Min:
9.6 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC28,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
10 mA
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
900 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
TPS65170RHDT Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI.
The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (typically between 1-10uH). You can also use online inductor selection tools or consult with the inductor manufacturer for specific recommendations.
The datasheet specifies a maximum input voltage of 18V, but it's important to note that the device can handle transient voltages up to 22V for short durations (less than 100ms). However, it's recommended to keep the input voltage below 18V to ensure reliable operation and prevent damage to the device.
The output voltage of the TPS65170RHDT can be adjusted by changing the resistor divider network connected to the FB pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. You can also use online calculators or simulation tools to simplify the process.
The thermal derating of the TPS65170RHDT is specified in the datasheet, and it indicates the reduction in output current capability as the device temperature increases. To ensure reliable operation, it's essential to consider the thermal derating when designing the system, especially in high-temperature environments or high-current applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65170RHDT Overview

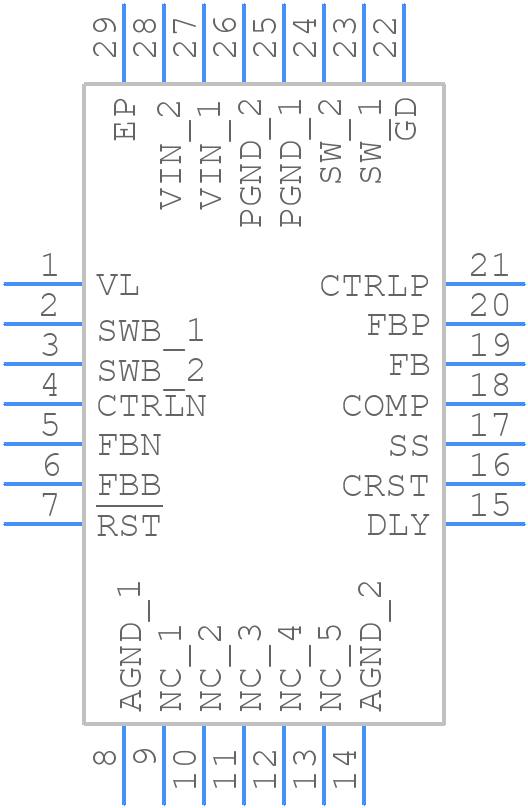

Use the download button to access the TPS65170RHDT schematic symbol, PCB footprint, and 3D model.
