Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. A general guideline is to use low-ESR capacitors with a voltage rating higher than the maximum input voltage, and to follow the recommended capacitance values in the datasheet.
The maximum ambient temperature range for the TPS65177ARHAR is -40°C to 125°C, but the device can operate up to 150°C with derating. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
To troubleshoot issues with the TPS65177ARHAR, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. Use an oscilloscope to check for voltage ripple, noise, or oscillations. If the issue persists, consult the datasheet and application notes, or contact Texas Instruments support for further assistance.
Yes, the TPS65177ARHAR is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and ISO 26262. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65177ARHAR Overview

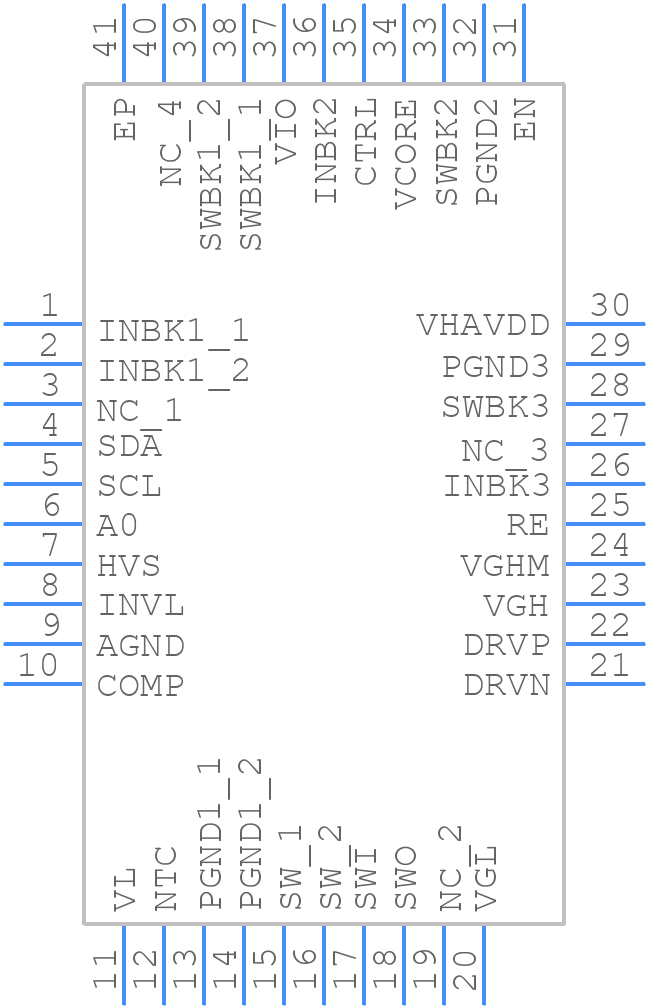

Use the download button to access the TPS65177ARHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Other Signal Circuits
