TPS65190RHDR - Texas Instruments

Description: 10-Channel Level Shifter for LCD Displays w/ VCOM Op-Amp

Download TPS65190RHDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

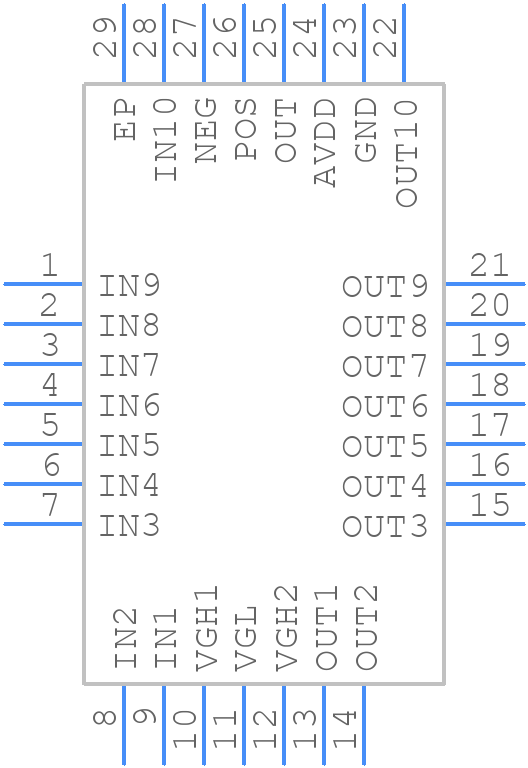

TPS65190RHDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65190RHDR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028B
click to zoom
3D Models
TPS65190RHDR - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028B
click to zoom

TPS65190RHDR Details

  • Manufacturer Part Number:

    TPS65190RHDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    38 V

  • Supply Voltage-Min:

    12 V

  • Supply Voltage-Nom:

    30 V

  • Supply Voltage1-Max:

    38 V

  • Supply Voltage1-Min:

    12 V

  • Supply Voltage1-Nom:

    30 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65190RHDR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65190RHDR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output voltage of the TPS65190RHDR can be set using the FB pin. The recommended output voltage range is 0.9V to 3.3V. To choose the right output voltage, consider the voltage requirements of your load, the input voltage range, and the desired efficiency.
  • The TPS65190RHDR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR, and place it close to the VOUT pin. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
  • The TPS65190RHDR can deliver up to 1.5A of output current, but it's recommended to keep the output current below 1.2A for optimal performance and reliability.
