TPS65192RHDR - Texas Instruments

Description: 9-Channel Level Shifter for LCD Displays with GPM

Download TPS65192RHDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

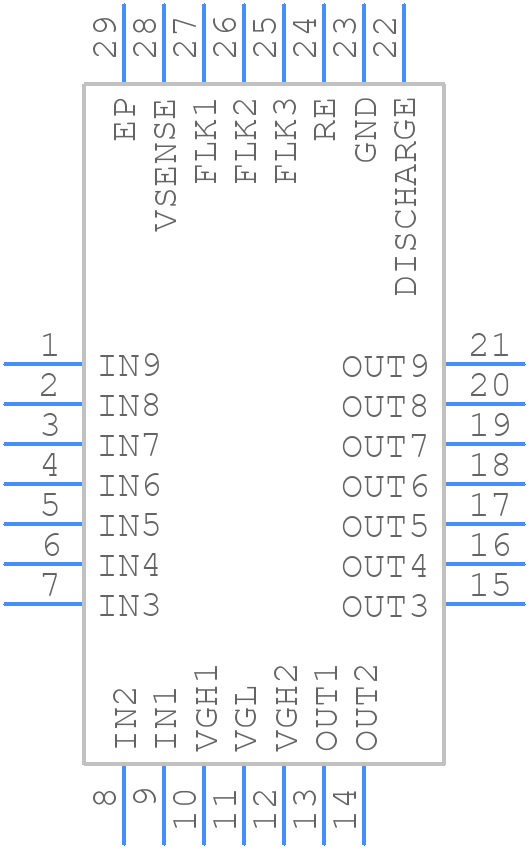

TPS65192RHDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65192RHDR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom
3D Models
TPS65192RHDR - Texas Instruments - 3D model - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom

TPS65192RHDR Details

  • Manufacturer Part Number:

    TPS65192RHDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Delay-Max:

    100 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    38 V

  • Supply Voltage-Min:

    12 V

  • Supply Voltage-Nom:

    30 V

  • Supply Voltage1-Max:

    38 V

  • Supply Voltage1-Min:

    12 V

  • Supply Voltage1-Nom:

    30 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65192RHDR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65192RHDR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A 10uF to 22uF X5R or X7R ceramic capacitor is a good choice. The output capacitor should be a low-ESR ceramic or tantalum capacitor with a value of 10uF to 47uF. The capacitor selection also depends on the output voltage and current requirements.
  • The TPS65192RHDR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the power dissipation of the device. It's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation.
  • The TPS65192RHDR has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OCP pin to GND. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a lower overcurrent threshold. It's recommended to use a 1kΩ to 10kΩ resistor for most applications.
  • Yes, the TPS65192RHDR is AEC-Q100 qualified and suitable for use in high-reliability and automotive applications. However, it's recommended to follow the specific requirements and guidelines for the target application, such as the Automotive Electronics Council (AEC) guidelines.
