Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure stable output voltage regulation, make sure to use the recommended output capacitor value and type, keep the output voltage within the specified range, and avoid sudden changes in input voltage or load current. Additionally, consider adding a soft-start circuit to reduce inrush current during power-up.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even IC failure.
The TPS65197RUYR is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating. Use a heat sink or thermal pad if necessary, and follow the recommended operating conditions to ensure reliable operation.
When troubleshooting issues with the TPS65197RUYR, start by verifying the input voltage, output voltage, and load current. Check for proper PCB layout, component selection, and soldering quality. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65197RUYR Overview

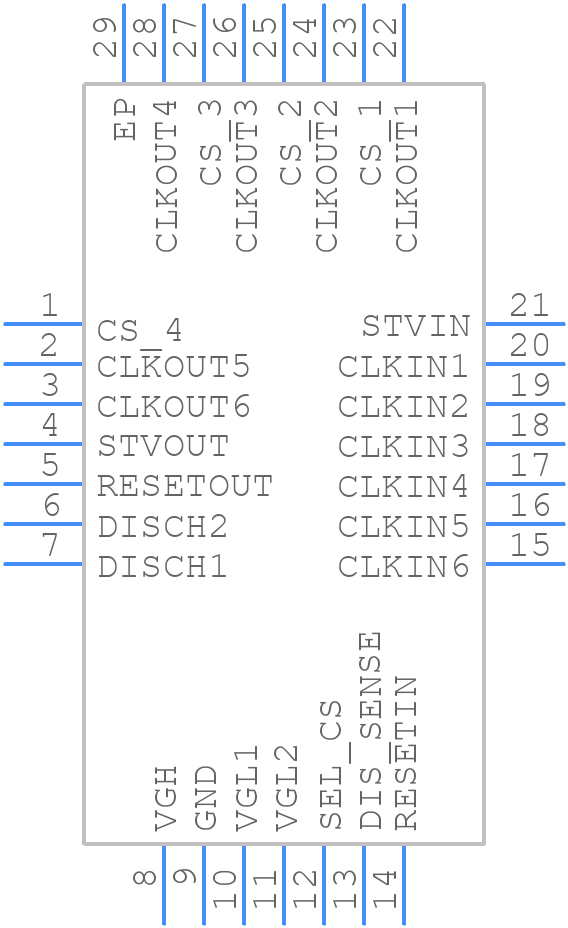

Use the download button to access the TPS65197RUYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
