Texas Instruments provides a recommended layout and placement guide in the TPS65258RHAT datasheet, which includes guidelines for component placement, thermal vias, and PCB layer stackup. Additionally, the TI website offers a layout checklist and a PCB thermal design guide to ensure optimal performance and thermal management.
The TPS65258RHAT is a highly configurable device, and selecting the correct output voltage and configuration depends on the specific requirements of your application. TI provides a configuration tool on their website, which helps you select the correct output voltage, switching frequency, and other parameters based on your application's needs.
The TPS65258RHAT has a high-power density, and thermal management is crucial to ensure reliable operation. TI recommends using a thermal pad, thermal vias, and a heat sink to dissipate heat. The datasheet provides thermal resistance and junction-to-case thermal resistance values to help with thermal design. Additionally, TI offers a thermal design guide and a thermal calculator tool to aid in thermal management.
TI provides a comprehensive troubleshooting guide in the TPS65258RHAT datasheet, which covers common issues, such as output voltage errors, overcurrent protection, and thermal shutdown. Additionally, TI offers a range of development tools, including evaluation modules and software development kits, to help debug and troubleshoot issues.
The TPS65258RHAT is designed to meet EMI and EMC standards, but proper PCB design and layout are crucial to minimize EMI and ensure EMC compliance. TI provides guidelines for EMI reduction, including the use of shielding, filtering, and proper component placement. Additionally, TI offers EMI and EMC testing and certification services to help ensure compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65258RHAT Overview

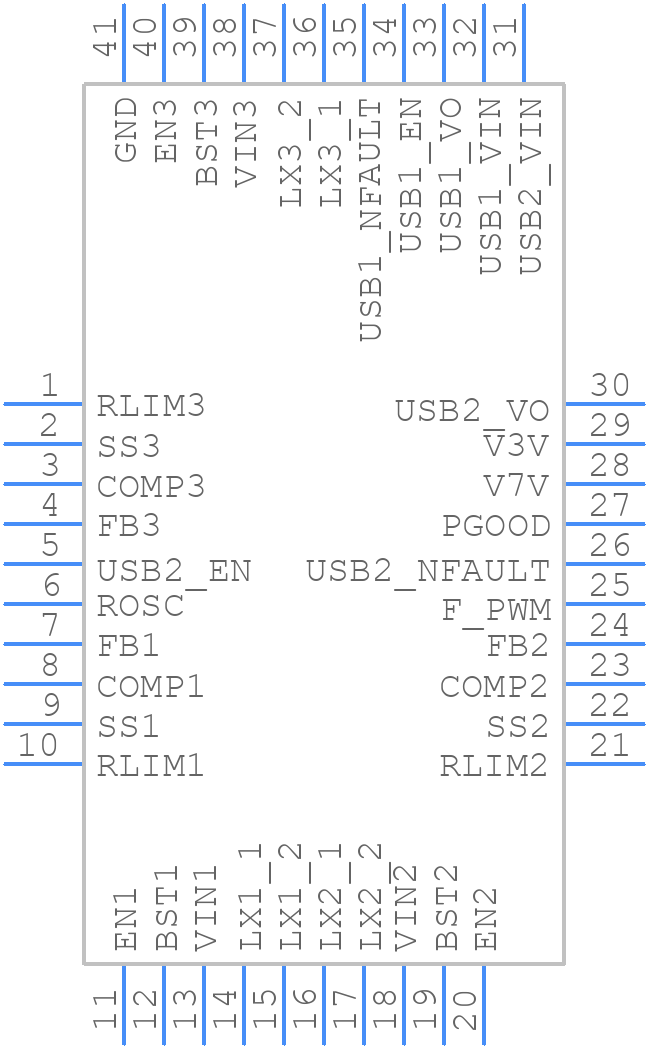

Use the download button to access the TPS65258RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
