TPS65262-2RHBR - Texas Instruments

Description: Switching Voltage Regulators 4.5V-18V Vin, 3A/1A/1A Triple Synchronous Buck Converter with 350mA/150mA Dual LDOs 32-VQFN -40 to 85

Download TPS65262-2RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

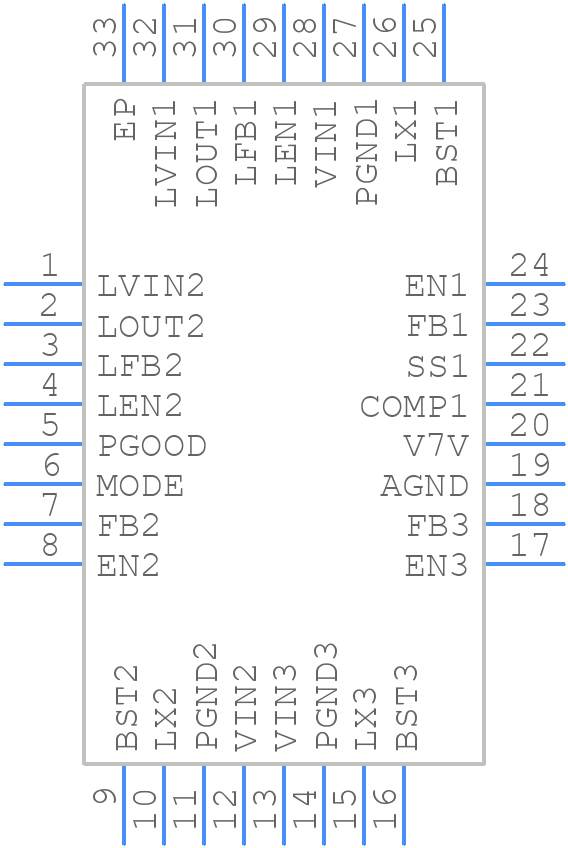

TPS65262-2RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65262-2RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom
3D Models
TPS65262-2RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom

TPS65262-2RHBR Details

  • Manufacturer Part Number:

    TPS65262-2RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUT CURRENT OF BUCK 2,3 IS 3A

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    1.3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    5

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    670 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65262-2RHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
  • To optimize output voltage ripple, ensure that the output capacitor is properly selected and placed close to the output pin, and that the input capacitor is properly selected and placed close to the input pin. Additionally, using a low-ESR output capacitor and minimizing the PCB trace inductance can help reduce output voltage ripple.
  • The TPS65262-2RHBR can handle input voltages up to 18V, but it's recommended to operate within the recommended input voltage range of 6.5V to 14V for optimal performance and reliability.
  • Ensure that the device is properly mounted on a PCB with a solid ground plane, and that the thermal pad is connected to a heat sink or a solid ground plane. Additionally, ensure that the device is operated within its recommended operating temperature range of -40°C to 125°C.
  • The recommended input capacitor value is 10uF to 22uF, and the recommended type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor.
