TPS65263-1QRHBTQ1 - Texas Instruments

Description: 4.5V-18V Input, Triple 3A/2A/2A Synchronous Buck Converter

Download TPS65263-1QRHBTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

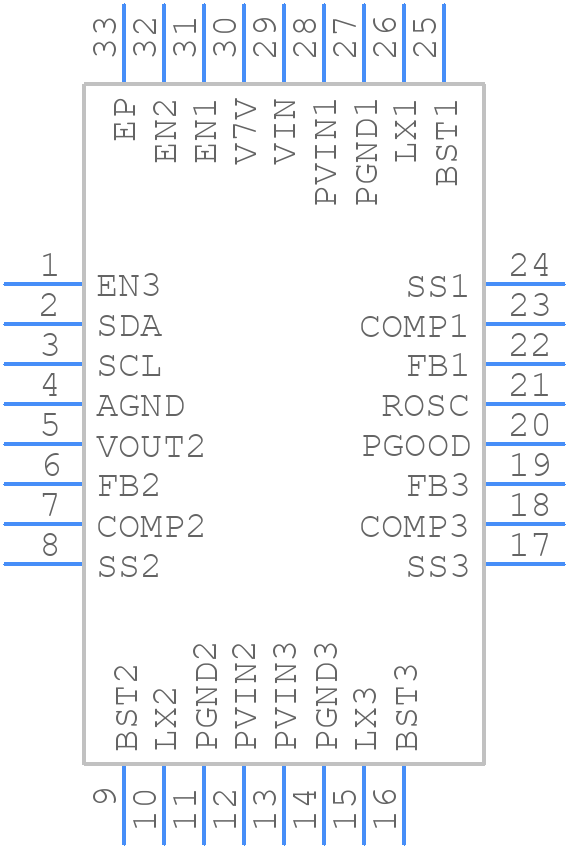

Symbol
TPS65263-1QRHBTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65263-1QRHBTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom
3D Models
TPS65263-1QRHBTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom

TPS65263-1QRHBTQ1 Details

  • Manufacturer Part Number:

    TPS65263-1QRHBTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-03-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE 0.68 TO 1.95V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    16 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65263-1QRHBTQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65263-1QRHBTQ1 involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • When choosing output capacitors for the TPS65263-1QRHBTQ1, consider the output voltage, output current, and ripple requirements. A good starting point is to use ceramic capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 2x the output voltage. The capacitor's ESR should be low enough to minimize voltage ripple.
  • The TPS65263-1QRHBTQ1 can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS65263-1QRHBTQ1 can be adjusted by using a resistor divider network between the FB pin and the output voltage. The resistor values can be calculated using the formula provided in the datasheet.
  • The thermal derating curve for the TPS65263-1QRHBTQ1 is provided in the datasheet. It shows the maximum output current that the device can handle at different ambient temperatures. The curve is based on a maximum junction temperature of 150°C.
