TPS65263RHBR - Texas Instruments

Description: 4.5V to 18V Input Voltage, 3A/2A/2A Output Current Step-Down Converter with I2C controlled

Download TPS65263RHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

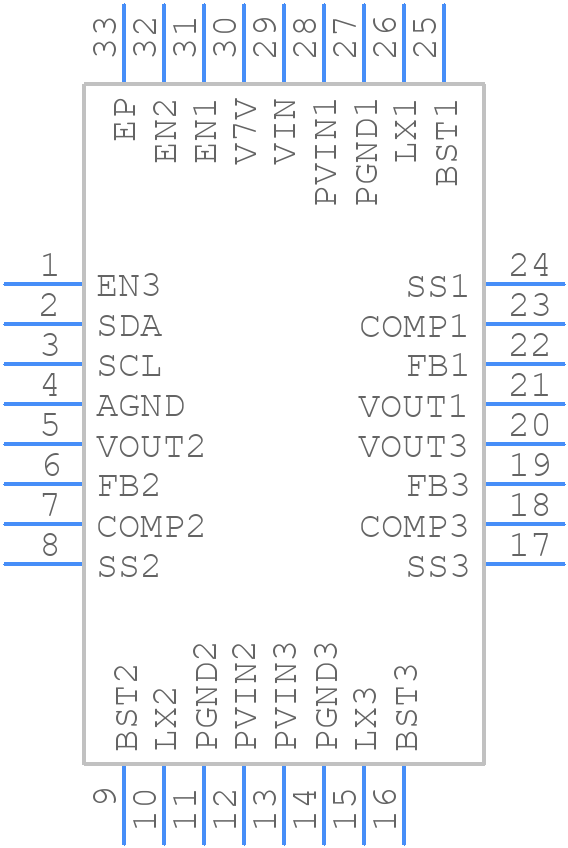

TPS65263RHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65263RHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom
3D Models
TPS65263RHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom

TPS65263RHBR Details

  • Manufacturer Part Number:

    TPS65263RHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    650 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65263RHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS65263RHBR datasheet (Section 10.2) and in the application note 'TPS65263RHBR Layout and Placement Guidelines' (SLUAU93). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall system reliability.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Texas Instruments recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The application note 'TPS65263RHBR Output Capacitor Selection' (SLUAU94) provides more detailed guidance.
  • The TPS65263RHBR has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure reliable operation and to prevent damage to the device. It's essential to ensure that the input voltage does not exceed 15V to maintain the device's reliability and performance.
  • The TPS65263RHBR output voltage can be configured using the FB pin and an external resistor divider network. The datasheet (Section 7.3.5) provides a formula to calculate the required resistor values for a specific output voltage. Additionally, Texas Instruments offers a voltage calculator tool to simplify the process.
  • The thermal derating curve for the TPS65263RHBR is provided in the datasheet (Figure 10-1). The curve shows the maximum output current vs. ambient temperature, allowing designers to determine the maximum output current at a given temperature. This information is essential for ensuring reliable operation and preventing overheating.
