A good PCB layout for the TPS65266-1RHBT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
The output voltage of the TPS65266-1RHBT can be set using the FB pin and an external resistor divider network. The output voltage range is 0.9V to 3.3V. Choose a voltage that meets the requirements of your load, and use the datasheet equations to calculate the resistor values.
The TPS65266-1RHBT has an absolute maximum input voltage rating of 6.5V. However, the recommended maximum input voltage is 5.5V to ensure reliable operation and minimize power dissipation.
To ensure stability, use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, place the output capacitor close to the VOUT pin, and use a low-ESR capacitor. Additionally, follow the datasheet guidelines for the input capacitor and PCB layout.
The TPS65266-1RHBT has a current limit of 2A. However, the maximum current delivery is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for thermal derating and current limit curves.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65266-1RHBT Overview

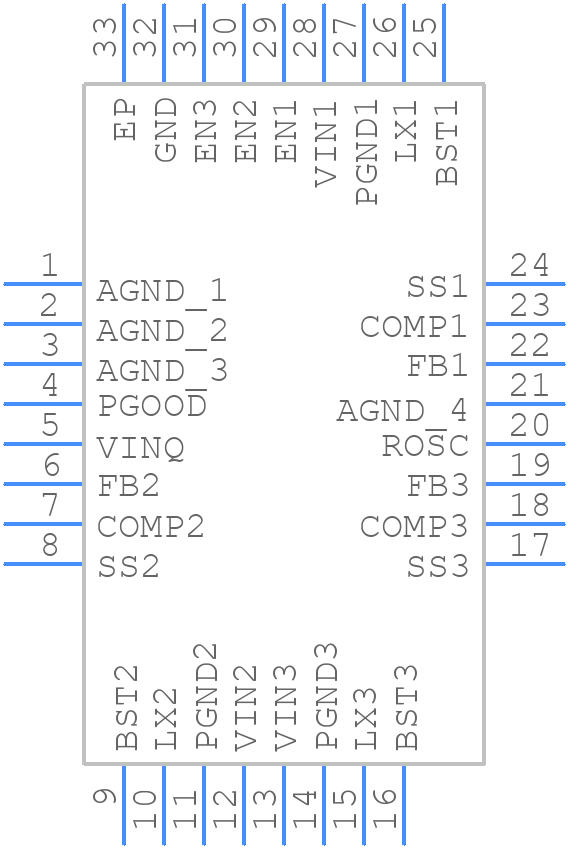

Use the download button to access the TPS65266-1RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
