TPS65268QRHBRQ1 - Texas Instruments

Description: 4-V to 8-V, 3-A, 2-A Triple Synchronous Step-Down Converter

Download TPS65268QRHBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

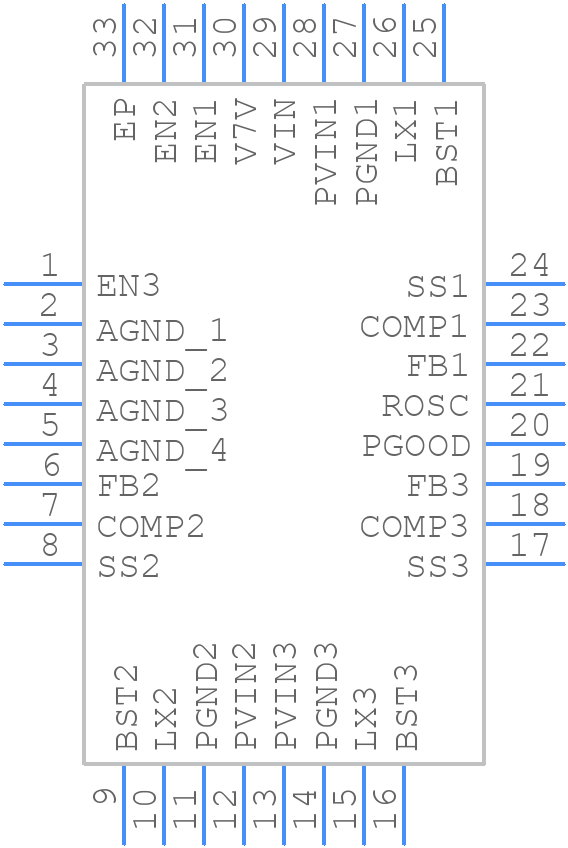

TPS65268QRHBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65268QRHBRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
TPS65268QRHBRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

TPS65268QRHBRQ1 Details

  • Manufacturer Part Number:

    TPS65268QRHBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-01-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    8 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS65268QRHBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65268QRHBRQ1 datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout guide and a layout checklist to help designers optimize their board design.
  • The selection of the output capacitor depends on the specific application requirements, such as output voltage, current, and ripple. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a maximum ESR of 100mΩ. The datasheet provides a detailed guide for selecting the correct output capacitor.
  • The TPS65268QRHBRQ1 has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 6.5V to 14V. Exceeding the absolute maximum rating can damage the device.
  • The TPS65268QRHBRQ1 has a resistive divider network that sets the output voltage. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. TI also offers a voltage calculator tool on their website to simplify the process.
  • The thermal derating curve for the TPS65268QRHBRQ1 is provided in the datasheet, which shows the maximum allowed power dissipation versus ambient temperature. The curve helps designers to determine the maximum output current and power dissipation at a given temperature.
