TPS65270RGER - Texas Instruments

Description: 2 Buck Converter with 4.5V to 16V Input Voltage, 2A/3A Output Current

Download TPS65270RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

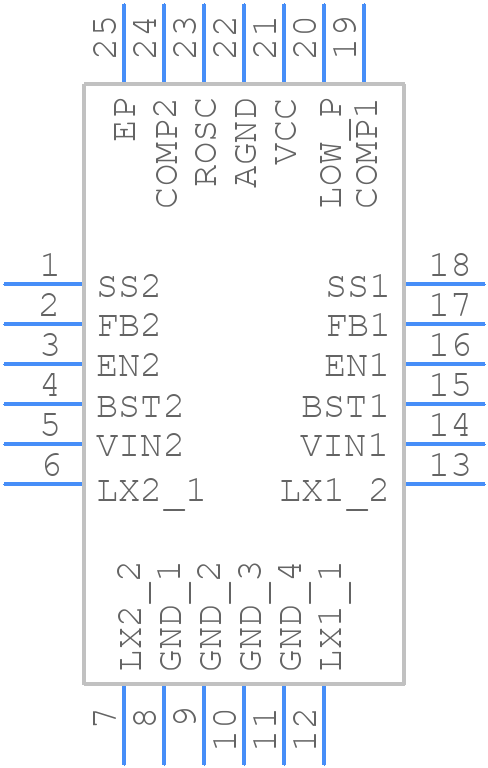

TPS65270RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65270RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
TPS65270RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

TPS65270RGER Details

  • Manufacturer Part Number:

    TPS65270RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Outputs:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65270RGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65270RGER involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output voltage of the TPS65270RGER can be set using the VID pins. The recommended approach is to use a resistive divider network to set the output voltage. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage.
  • The TPS65270RGER can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • The TPS65270RGER has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. The datasheet provides a formula to calculate the required resistor value based on the desired overcurrent threshold.
  • The thermal derating curve for the TPS65270RGER is not explicitly provided in the datasheet, but it can be obtained from the manufacturer or through thermal simulation tools. As a general guideline, the device can operate up to 125°C, but the output current should be derated by 50% above 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65270RGER Overview

Use the download button to access the TPS65270RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
