TPS65273VRHHR - Texas Instruments

Description: 4.5V to 18V Input, 3.5A/3.5A Dual Synchronous Step-down Converter with I2C Controlled VID

Download TPS65273VRHHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

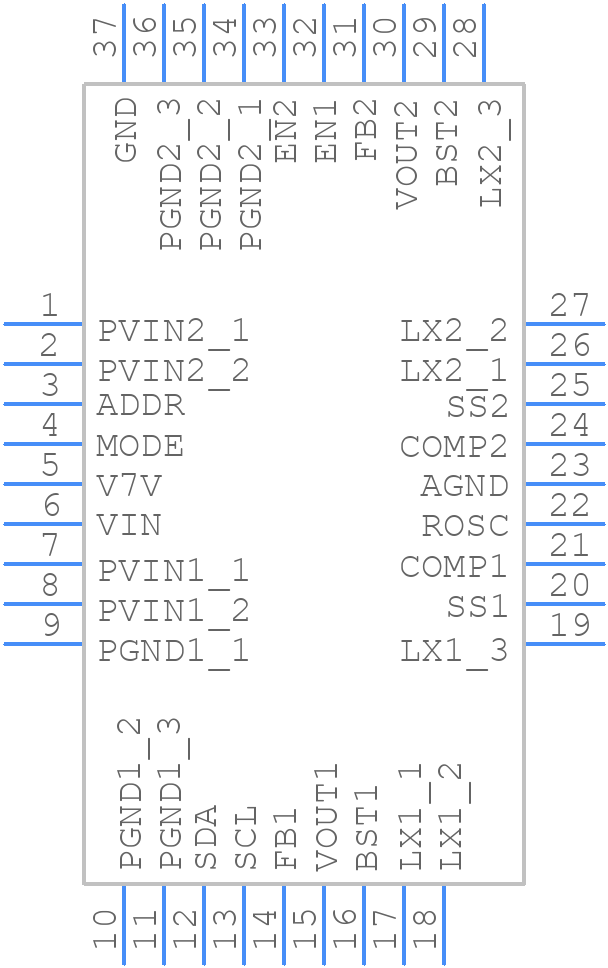

TPS65273VRHHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65273VRHHR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHH0036B
click to zoom
3D Models
TPS65273VRHHR - Texas Instruments - 3D model - Quad Flat No-Lead - RHH0036B
click to zoom

TPS65273VRHHR Details

  • Manufacturer Part Number:

    TPS65273VRHHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE OUTPUT MODE FROM 0.68 V TO 1.95 V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1600 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65273VRHHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS65273VRHHR datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPS65273 PCB Layout Guidelines' (SLUAAC7) for optimal performance and thermal management.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. Refer to the TI application note 'Output Capacitor Selection for Switching Regulators' (SLUAAC6) for more information.
  • The TPS65273VRHHR has an absolute maximum input voltage rating of 18V, but the recommended maximum input voltage is 15V to ensure reliable operation and prevent damage to the device.
  • The TPS65273VRHHR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. Refer to the datasheet for more information on how to calculate the resistor value.
  • The thermal shutdown temperature of the TPS65273VRHHR is typically around 150°C, but it can vary depending on the specific device and operating conditions. Refer to the datasheet for more information on thermal shutdown and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65273VRHHR Overview

Use the download button to access the TPS65273VRHHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
