Texas Instruments provides a recommended PCB layout in the TPS65273VRHHT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and ensure optimal performance.
The output capacitor selection depends on the output voltage, output current, and desired transient response. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. However, it's recommended to consult the TI capacitor selection tool or perform simulations using the TPS65273VRHHT SPICE model to determine the optimal capacitor value for your specific application.
Although the datasheet specifies a maximum input voltage of 5.5V, the TPS65273VRHHT can handle input voltages up to 6V for short durations (e.g., during power-up or voltage transients). However, continuous operation above 5.5V is not recommended and may affect the device's reliability and performance.
The TPS65273VRHHT is rated for operation up to 105°C, but its performance and reliability may degrade at higher temperatures. It's essential to consider the device's thermal management, including heat sinking and airflow, to ensure reliable operation in high-temperature environments.
TI provides a troubleshooting guide for the TPS65273VRHHT, which includes a step-by-step approach to identify and resolve common issues. Additionally, engineers can use TI's WEBENCH Power Designer tool to simulate and analyze the power supply design, helping to identify potential issues before prototyping.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65273VRHHT Overview

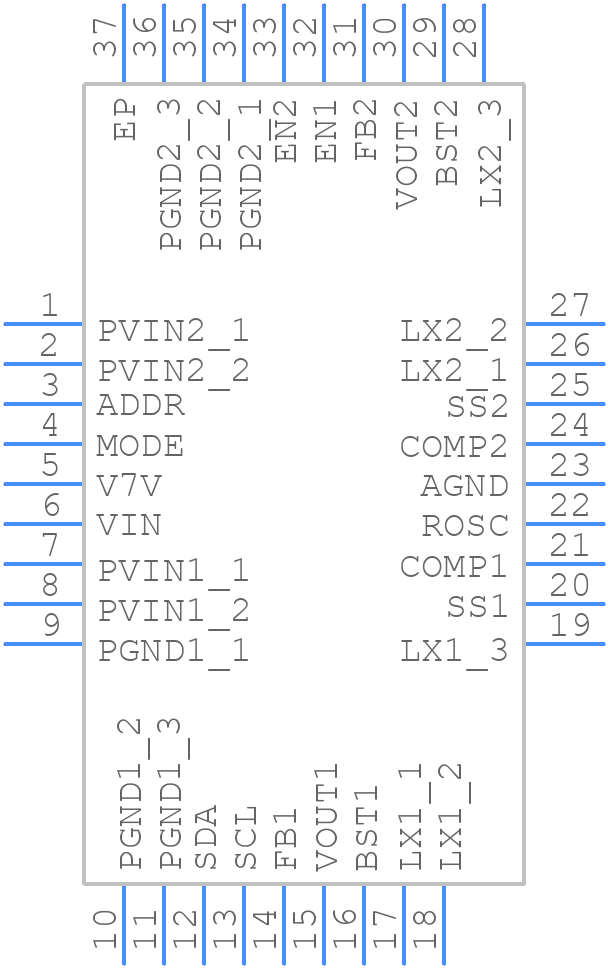

Use the download button to access the TPS65273VRHHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
