TPS65276VRHHR - Texas Instruments

Description: 4.5-V to 18-V Input, Dual (6-A and 3.5-A) Synchronous Step-Down Converter with I2C Control

Download TPS65276VRHHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

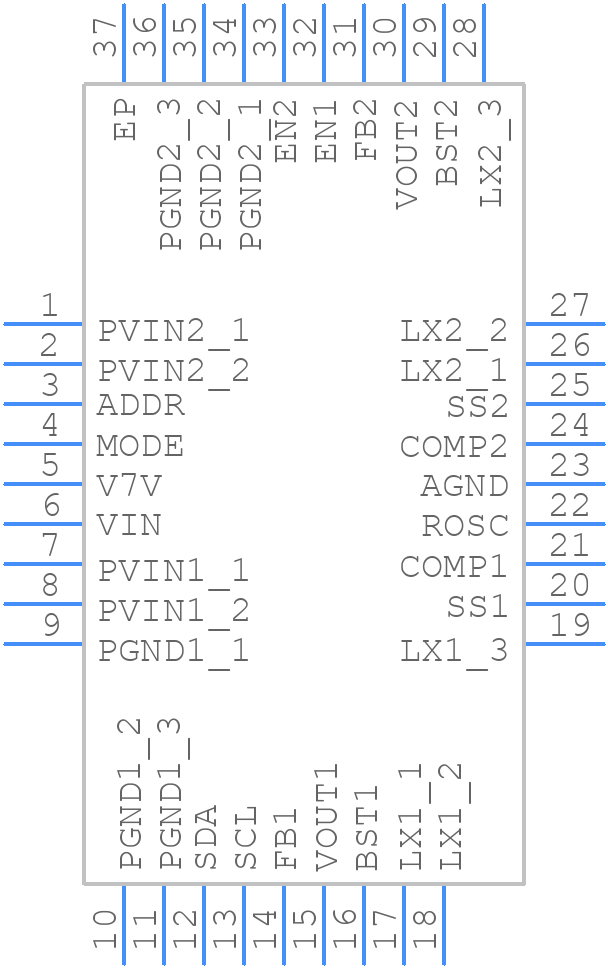

Symbol
TPS65276VRHHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65276VRHHR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHH0036B
click to zoom
3D Models
TPS65276VRHHR - Texas Instruments - 3D model - Quad Flat No-Lead - RHH0036B
click to zoom

TPS65276VRHHR Details

  • Manufacturer Part Number:

    TPS65276VRHHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-36

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS65276VRHHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPS65276 PCB Layout Guidelines' (SLVAE04) for optimal performance and thermal management.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF for each output. The 'TPS65276 Output Capacitor Selection' application note (SLVAE05) provides more detailed guidance.
  • The TPS65276VRHHR has an absolute maximum input voltage rating of 18V, but the recommended maximum input voltage is 15V to ensure reliable operation and minimize stress on the device.
  • The output voltage is set using the FB pin and an external resistor divider network. The 'TPS65276 Output Voltage Configuration' application note (SLVAE06) provides a step-by-step guide on how to calculate the required resistor values for a specific output voltage.
  • The TPS65276VRHHR has a thermal derating of 1.5°C/W above 25°C. This means that the device's power dissipation capability decreases as the ambient temperature increases. The 'TPS65276 Thermal Derating' application note (SLVAE07) provides more information on how to calculate the maximum power dissipation for a given ambient temperature.
