TPS65281-1RGVR - Texas Instruments

Description: 3A, 4.5V to 18V, Precision Adjustable Current Limited Power Distribution Switch

Download TPS65281-1RGVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

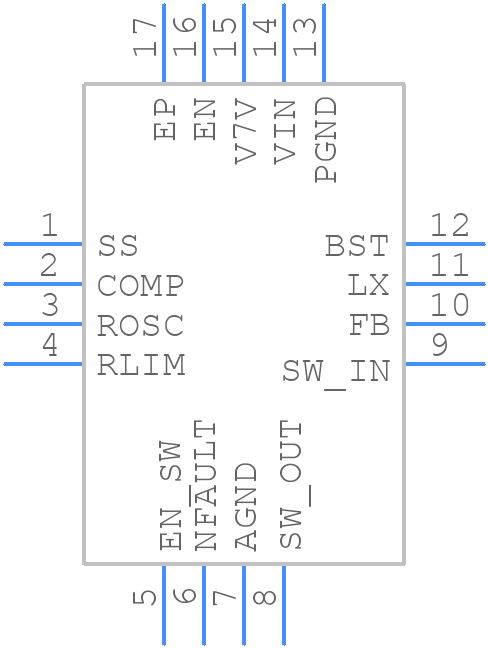

TPS65281-1RGVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65281-1RGVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom
3D Models
TPS65281-1RGVR - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom

TPS65281-1RGVR Details

  • Manufacturer Part Number:

    TPS65281-1RGVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    16 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65281-1RGVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65281-1RGVR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of at least 22uF. The capacitor selection should also consider the voltage rating, ripple current rating, and temperature range.
  • The TPS65281-1RGVR can handle an input voltage up to 18V, but it's recommended to operate it within the specified input voltage range of 6.5V to 14V for optimal performance and reliability.
  • The output voltage of the TPS65281-1RGVR can be adjusted by connecting a resistor divider network between the FB pin and the output voltage, and then connecting the center tap of the divider to the VOUT pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2.
  • The thermal derating curve for the TPS65281-1RGVR is not explicitly provided in the datasheet, but it can be estimated based on the package thermal resistance and the maximum junction temperature. As a general guideline, the device should be derated by 1.5% per degree Celsius above 25°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65281-1RGVR Overview

Use the download button to access the TPS65281-1RGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Switching Regulator or Controllers
