Texas Instruments provides a recommended layout and placement guide in the TPS65282RGER datasheet (SLVSBE7) and in the application note 'TPS65282RGER Layout and Placement Guidelines' (SLVAE45). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall system reliability.
The TPS65282RGER is a highly configurable device. To select the correct output voltage and configuration, refer to the datasheet (SLVSBE7) and the 'TPS65282RGER Configuration and Programming Guide' (SLVAE44). You can also use the TI Power Designer software tool to help with configuration and simulation.
The TPS65282RGER has a high-power density, so thermal management is crucial. Ensure proper heat dissipation by following the recommended layout and placement guidelines, using a heat sink or thermal pad, and keeping the device away from other heat sources. Refer to the datasheet (SLVSBE7) and the 'TPS65282RGER Thermal Design Considerations' application note (SLVAE46) for more information.
For troubleshooting and debugging, refer to the TPS65282RGER datasheet (SLVSBE7) and the 'TPS65282RGER Troubleshooting Guide' (SLVAE47). You can also use TI's Power Designer software tool to simulate and analyze the device's behavior. Additionally, consult the TI E2E forum and other online resources for community support and knowledge sharing.
The TPS65282RGER is a switching regulator, which can generate EMI and noise. To minimize these effects, follow the recommended layout and placement guidelines, use proper filtering and shielding, and consider using a spread-spectrum clock generator. Refer to the datasheet (SLVSBE7) and the 'TPS65282RGER EMI and Noise Considerations' application note (SLVAE48) for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65282RGER Overview

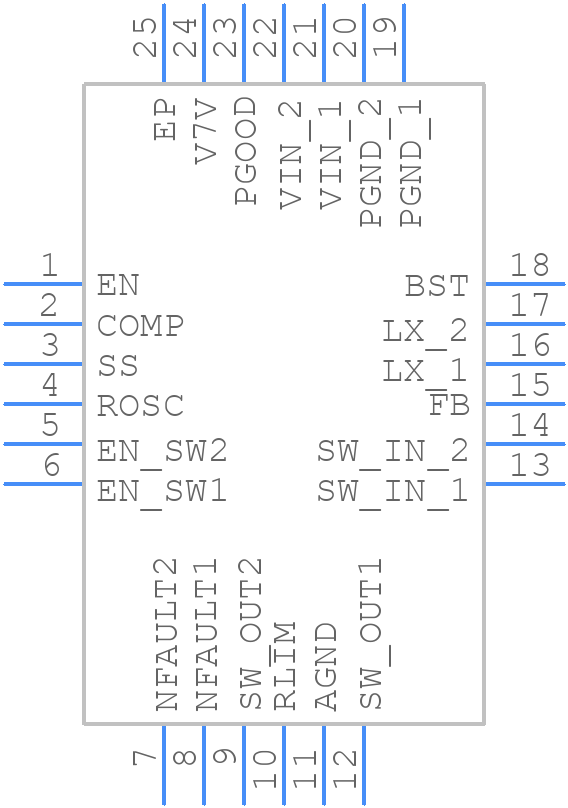

Use the download button to access the TPS65282RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65,
or try a keyword search, such as Switching Regulator or Controllers
