ALSO OPERTAES IN PFM CONTROL TECHNIQUE; PEAK CUR FOR VOUT 2 AND 3 IS 3 AMP
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
18 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N40
JESD-609 Code:
e4
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
40
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
17 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC40,.24SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2200 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
TPS65287RHAR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the TPS65287RHAR datasheet (Section 10.2) and in the application note 'TPS65287RHAR Layout and Placement Guidelines' (SLUAUH5). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and overall system reliability.
The TPS65287RHAR has a programmable output voltage range of 0.9 V to 3.3 V. To select the correct output voltage, consider the voltage requirements of your load, the input voltage range, and the desired output voltage accuracy. You can use the TPS65287RHAR's voltage-setting resistors (R1 and R2) to set the output voltage according to the formula provided in the datasheet (Section 7.3.1).
The TPS65287RHAR has an absolute maximum input voltage rating of 6.5 V. However, the recommended input voltage range is 3.5 V to 5.5 V. Operating the device outside of this range may affect its performance, efficiency, and reliability.
To ensure proper thermal performance, follow the recommended layout and placement guidelines, and provide adequate heat sinking and airflow around the device. The TPS65287RHAR has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. Monitor the device's temperature using the thermal monitoring pin (TMP) and take corrective action to prevent overheating.
The EN (enable) pin is an active-high input that enables or disables the TPS65287RHAR. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use the EN pin to control the power-on sequence, implement power-saving modes, or reset the device. Ensure that the EN pin is properly biased and decoupled to prevent unwanted device behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65287RHAR Overview

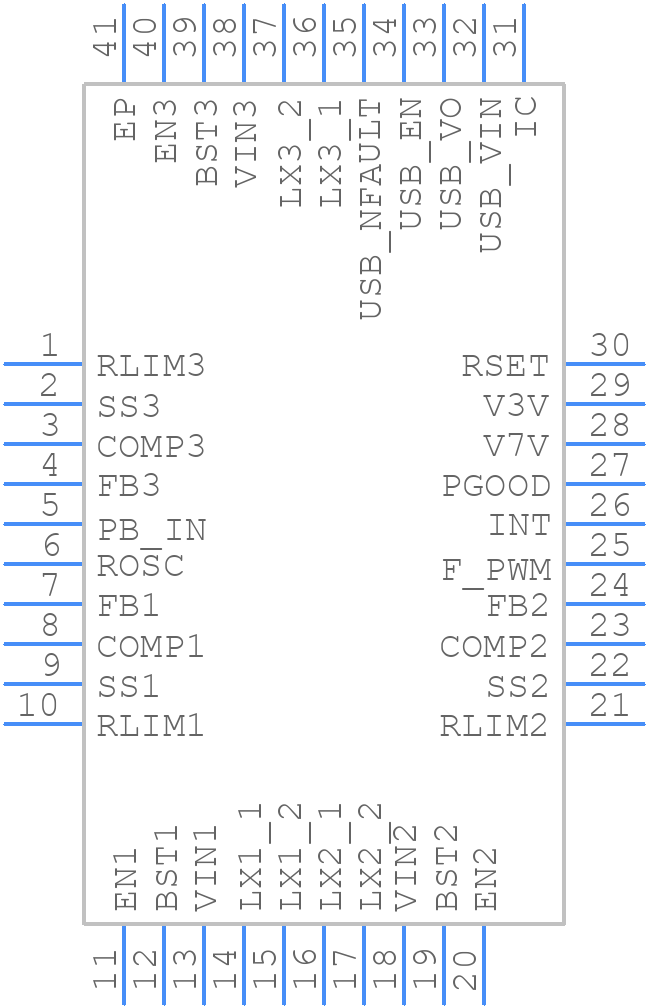

Use the download button to access the TPS65287RHAR schematic symbol, PCB footprint, and 3D model.
