TPS65320CQPWPRQ1 - Texas Instruments

Description: Automotive 3.6V to 36V, 3.2A Buck Converter with Auto-Sourced 280mA LDO Regulator

Download TPS65320CQPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

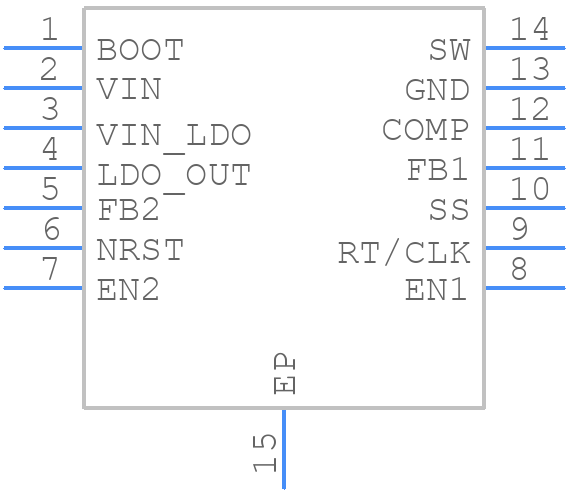

TPS65320CQPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65320CQPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0014G
click to zoom
3D Models
TPS65320CQPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0014G
click to zoom

TPS65320CQPWPRQ1 Details

  • Manufacturer Part Number:

    TPS65320CQPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-06-02

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.1 TO 20V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    1.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS65320CQPWPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS65320CQPWPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
  • The TPS65320CQPWPRQ1 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • The TPS65320CQPWPRQ1 is a QFN package device, which can be sensitive to vibration. TI recommends using a robust PCB design and securing the device with a suitable adhesive or mechanical fastening to ensure reliable operation in high-vibration environments.
  • To troubleshoot issues with the TPS65320CQPWPRQ1, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple and noise. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
