ALSO OPERATES IN CURRENT MODE AVERAGE CURRENT MODE AND PFM TECHNIQUE ALSO POSSIBLE
Analog IC - Other Type:
BATTERY CHARGE CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
1.5 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PQCC-N48
JESD-609 Code:
e4
Length:
6 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
9
Number of Terminals:
48
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Output Current-Max:
10 A
Output Voltage-Max:
20 V
Output Voltage-Min:
-10 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.9 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
800 kHz
Technology:
BICMOS
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
TPS65530RSLR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS65530RSLR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. TI recommends using a low-ESR ceramic capacitor with a value between 1 μF to 10 μF. The capacitor should be placed close to the VIN pin and have a low inductance path to the input voltage source.
The TPS65530RSLR can deliver up to 3 A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
The TPS65530RSLR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. This allows the device to detect overvoltage conditions and shut down the output to prevent damage. TI provides a detailed application note on implementing OVP with the TPS65530RSLR.
The EN (enable) pin is used to turn the device on or off. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65530RSLR Overview

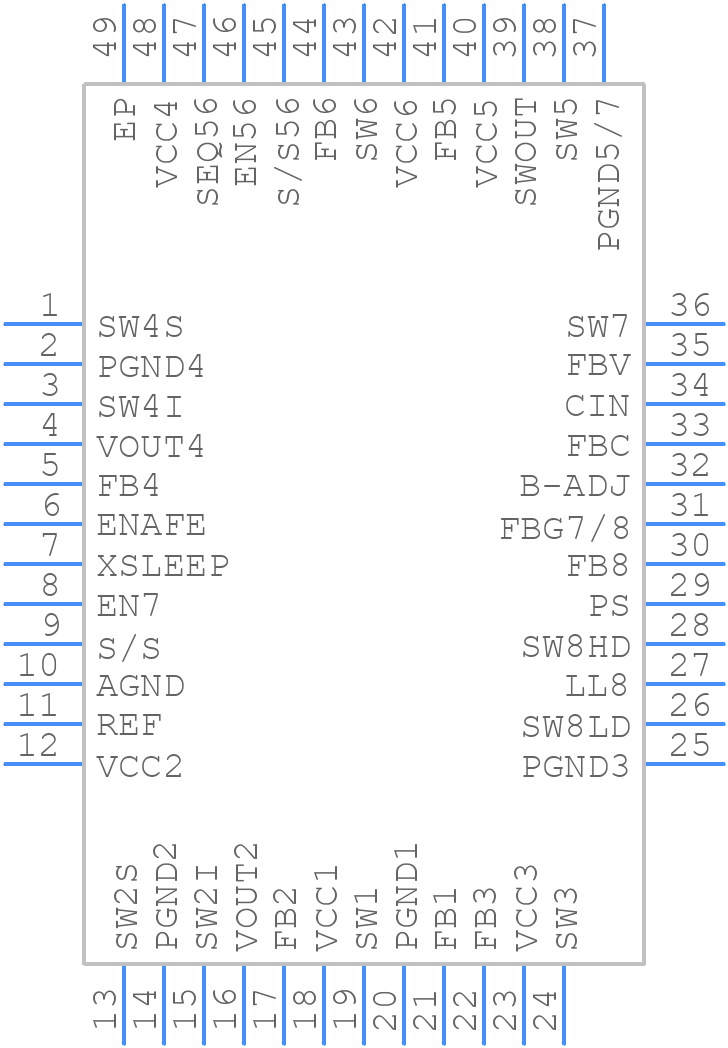

Use the download button to access the TPS65530RSLR schematic symbol, PCB footprint, and 3D model.
