SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
3.6 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
700 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS65581PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS65581PWP datasheet (Section 10.2) and in the TPS65581PWP Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
The input capacitor values depend on the input voltage, output voltage, and desired output ripple. TI recommends using X5R or X7R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. Refer to the datasheet (Section 7.3.1) for more information.
The TPS65581PWP can deliver up to 1.5A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and thermal conditions. Refer to the datasheet (Section 6.3) for more information on output current capability.
The TPS65581PWP has built-in OVP and UVP features. To implement these features, connect the OVP and UVP pins to the desired voltage threshold using resistive dividers. Refer to the datasheet (Section 7.3.4) for more information on OVP and UVP implementation.
The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS65581PWP Overview

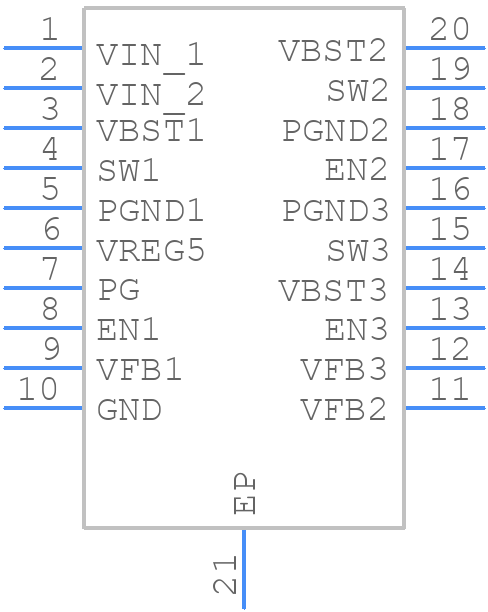

Use the download button to access the TPS65581PWP schematic symbol, PCB footprint, and 3D model.
