TPS65632RTET - Texas Instruments

Description: Triple-Output AMOLED Display Power Supply

Download TPS65632RTET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

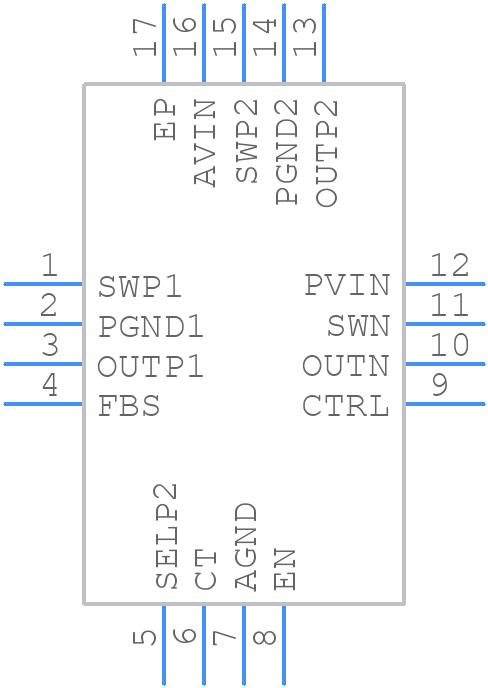

TPS65632RTET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65632RTET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
TPS65632RTET - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

TPS65632RTET Details

  • Manufacturer Part Number:

    TPS65632RTET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    AC-DC LED POWER SUPPLY MODULE

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    4.6368 V

  • Output Voltage-Min:

    4.5632 V

  • Output Voltage-Nom:

    4.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,.20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    SHORT CIRCUIT, THERMAL

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    2.811 W

  • Trim/Adjustable Output:

    NO

  • Width:

    3 mm

TPS65632RTET Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate power planes for VIN and VOUT, and a star-connected layout for the output capacitors is recommended. Additionally, keep the input and output capacitors close to the IC, and use a common ground point for the input and output returns.
  • Choose capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Ceramic capacitors (X5R or X7R dielectric) with a capacitance value between 10uF to 22uF are suitable. Ensure the capacitor's voltage rating is higher than the output voltage.
  • The TPS65632RTET can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize power dissipation.
  • The soft-start feature is enabled by connecting a capacitor (typically 10nF to 100nF) between the SS pin and GND. The soft-start time can be adjusted by changing the capacitor value. A larger capacitor value increases the soft-start time.
  • The EN (Enable) pin is used to turn the converter on or off. Connect the EN pin to VIN to enable the converter, or connect it to GND to disable it. You can also use an external logic signal to control the EN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65632RTET Overview

Use the download button to access the TPS65632RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Supply Modules

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
