TPS6565342RHDRQ1 - Texas Instruments

Description: Automotive 4-MHz, dual 3-A buck converters with integrated switches

Download TPS6565342RHDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

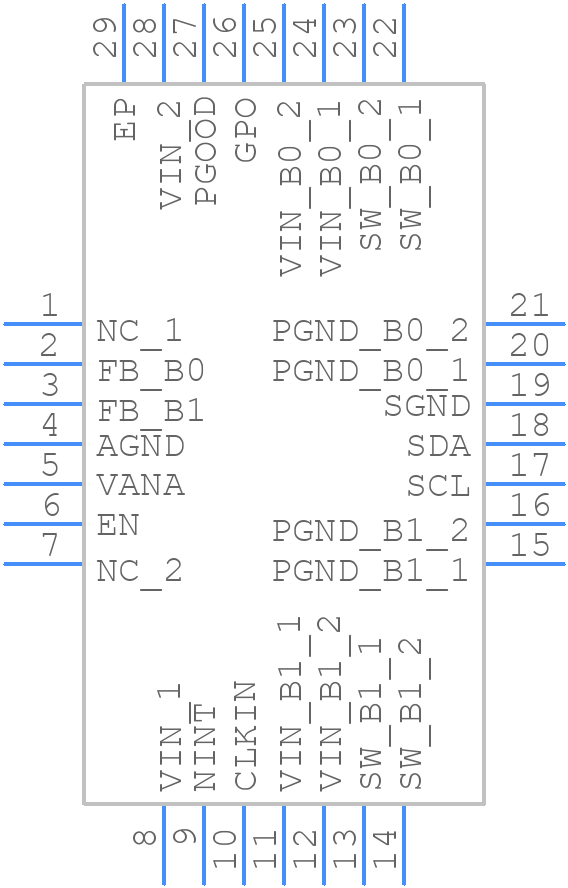

TPS6565342RHDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS6565342RHDRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028W
click to zoom
3D Models
TPS6565342RHDRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028W
click to zoom

TPS6565342RHDRQ1 Details

  • Manufacturer Part Number:

    TPS6565342RHDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100; ATEX

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS6565342RHDRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • The TPS6565342RHDRQ1 is rated for operation from -40°C to 125°C. Ensure proper thermal design, including heat sinking, thermal vias, and adequate airflow to maintain a safe operating temperature. Monitor the device's temperature using the internal thermal monitoring feature or external temperature sensors.
  • The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures stable operation and minimizes input voltage ripple. However, the optimal value may vary depending on the specific application and input voltage characteristics.
  • The TPS6565342RHDRQ1 has a built-in power sequencing feature. Configure the device by setting the SEQ pin to control the power-up and power-down sequence of the outputs. Refer to the datasheet for specific configuration options and guidelines.
  • The maximum output current capability of each channel is 3.5A. However, the total output current should not exceed 7A. Ensure that the device is properly heatsinked and the output currents are within the specified limits to prevent overheating and damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS6565342RHDRQ1 Overview

Use the download button to access the TPS6565342RHDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Switching Regulator or Controllers
