SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS70302PWP Frequently Asked Questions (FAQs)
A good PCB layout for the TPS70302PWP involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input voltage and to connect the exposed pad to the ground plane.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low equivalent series resistance (ESR). Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
The TPS70302PWP can handle a maximum input voltage of 12V. However, it's recommended to operate the device within the specified input voltage range of 2.7V to 10V to ensure optimal performance and reliability.
The TPS70302PWP is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure the device operates within its specified temperature range.
The power dissipation of the TPS70302PWP can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. It's essential to consider the power dissipation to ensure the device operates within its specified thermal limits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS70302PWP Overview

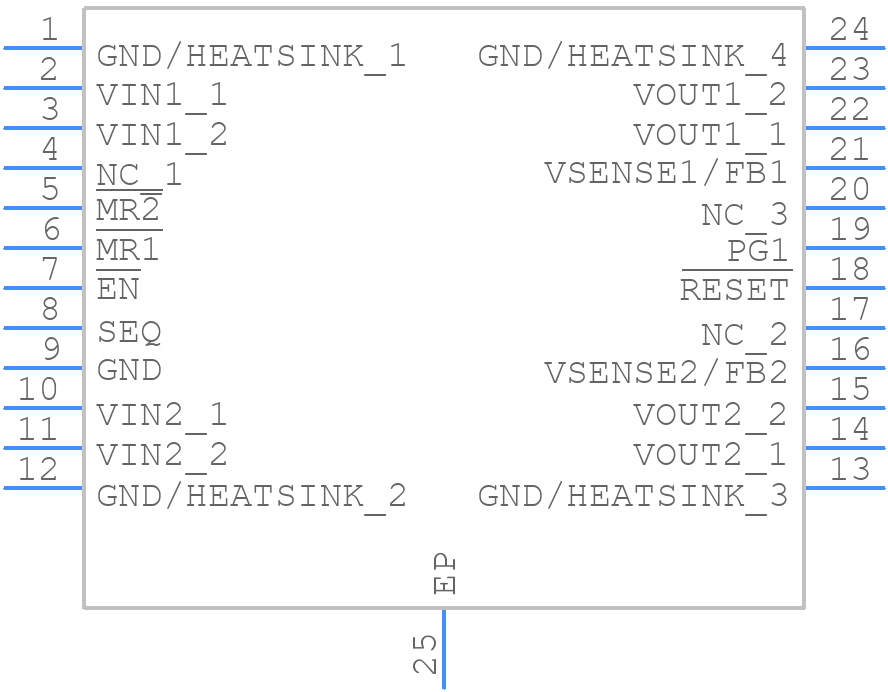

Use the download button to access the TPS70302PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS70,
or try a keyword search, such as Linear Regulator ICs
