TPS71401DRVT - Texas Instruments

Description: 80mA, 10V, Quiescent Current 3.0μA, LDO Linear Regulator in SC70 or SON2x2

Download TPS71401DRVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

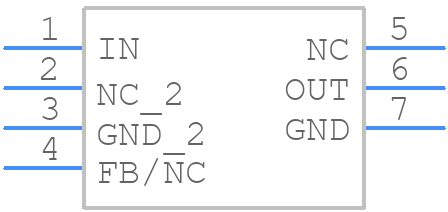

TPS71401DRVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS71401DRVT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
TPS71401DRVT - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

TPS71401DRVT Details

  • Manufacturer Part Number:

    TPS71401DRVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.3 V

  • Dropout Voltage1-Nom:

    0.415 V

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.052

  • Load Regulation-Max(%):

    2.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.08 A

  • Output Voltage1-Max:

    8.8 V

  • Output Voltage1-Min:

    1.2 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3.3%

  • Width:

    2 mm

TPS71401DRVT Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS71401DRVT is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can damage the device.
  • To ensure stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum ESR of 1 ohm, as specified in the datasheet. Additionally, the input voltage should be well-regulated and the input capacitance should be sufficient to filter out any noise or ripple.
  • The minimum input voltage required for the TPS71401DRVT to operate is 2.7V, as specified in the electrical characteristics section of the datasheet. However, the device may not be able to regulate the output voltage accurately at input voltages close to this minimum value.
  • The TPS71401DRVT is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The power dissipation of the TPS71401DRVT can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The device's thermal resistance (RθJA) should also be considered to ensure proper thermal management.
