TPS71433DRVT - Texas Instruments

Description: 80-mA 24-V ultra-low-IQ low-dropout (LDO) voltage regulator

Download TPS71433DRVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

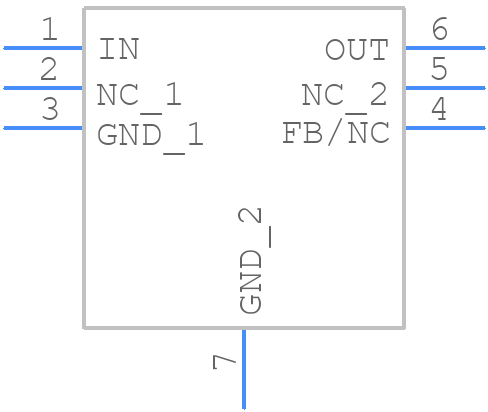

TPS71433DRVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS71433DRVT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
TPS71433DRVT - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

TPS71433DRVT Details

  • Manufacturer Part Number:

    TPS71433DRVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1.3 V

  • Dropout Voltage1-Nom:

    0.415 V

  • Input Voltage Absolute-Max:

    24 V

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.005%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.08 A

  • Output Voltage1-Max:

    3.465 V

  • Output Voltage1-Min:

    3.135 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    5%

  • Width:

    2 mm

TPS71433DRVT Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS71433DRVT is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can cause damage to the device.
  • To ensure stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF, and to follow the layout guidelines provided in the datasheet to minimize noise and parasitic inductance. Additionally, the input voltage should be well-regulated and the load current should be within the recommended range.
  • The typical dropout voltage of the TPS71433DRVT is around 300mV at an output current of 150mA, as shown in the datasheet's dropout voltage vs. output current graph. This means that the input voltage should be at least 300mV higher than the desired output voltage to ensure proper regulation.
  • The TPS71433DRVT is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It is recommended to follow the thermal design guidelines provided in the datasheet and to ensure proper heat sinking to maintain a safe operating temperature.
  • The power dissipation of the TPS71433DRVT can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The maximum power dissipation is limited by the device's thermal rating and the ambient temperature.
