TPS71709QDRVRQ1 - Texas Instruments

Description: Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator for Automotive Applications

Download TPS71709QDRVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

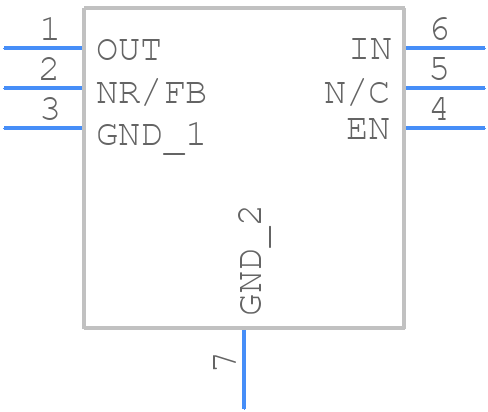

TPS71709QDRVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS71709QDRVRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006D
click to zoom
3D Models
TPS71709QDRVRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRV0006D
click to zoom

TPS71709QDRVRQ1 Details

  • Manufacturer Part Number:

    TPS71709QDRVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    0.93 V

  • Output Voltage1-Min:

    0.87 V

  • Output Voltage1-Nom:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    2 mm

TPS71709QDRVRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • The TPS71709QDRVRQ1 is stable with a wide range of output capacitors, but it's recommended to use a capacitor with an ESR (Equivalent Series Resistance) of 0.1 ohms or less. Additionally, the output capacitor should be placed close to the device and have a low inductance path to the device.
  • The maximum input voltage rating of the TPS71709QDRVRQ1 is 13.2V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 10V for optimal performance and reliability.
  • The TPS71709QDRVRQ1 has a built-in voltage transient protector that helps to regulate the output voltage during input voltage transients. However, it's still recommended to use input capacitors with a low ESR to help filter out high-frequency noise and transients.
  • Yes, the TPS71709QDRVRQ1 is AEC-Q100 qualified, which means it meets the requirements for automotive applications. However, it's still recommended to follow the specific requirements and guidelines for the target automotive application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS71709QDRVRQ1 Overview

Use the download button to access the TPS71709QDRVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS71, or try a keyword search, such as Linear Regulator ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
