TPS71730QDRVRQ1 - Texas Instruments

Description: Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator for Automotive Applications

Download TPS71730QDRVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

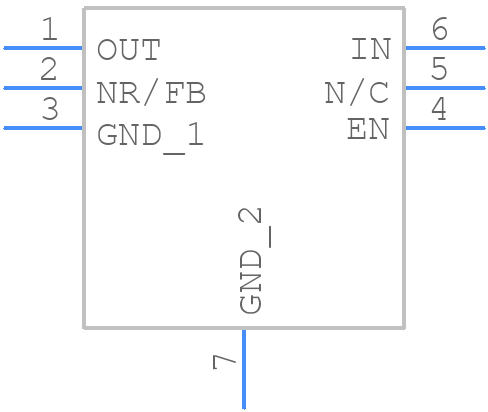

Symbol
TPS71730QDRVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS71730QDRVRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006D
click to zoom
3D Models
TPS71730QDRVRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRV0006D
click to zoom

TPS71730QDRVRQ1 Details

  • Manufacturer Part Number:

    TPS71730QDRVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.09 V

  • Output Voltage1-Min:

    2.91 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    2 mm

TPS71730QDRVRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS71730QDRVRQ1 datasheet, which includes a thermal pad connected to a copper plane on the PCB to dissipate heat. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to keep the thermal pad away from any high-current paths.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to minimize ringing.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The TPS71730QDRVRQ1 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management in high-temperature environments. Ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. Additionally, Texas Instruments provides a Power Supply Ripple and Noise Calculator tool that can be used to estimate the output voltage ripple and noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS71730QDRVRQ1 Overview

Use the download button to access the TPS71730QDRVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS71, or try a keyword search, such as Linear Regulator ICs
