TPS71733DRVR - Texas Instruments

Description: 150mA, High PSRR, Low Quiescent Current, Low Noise LDO

Download TPS71733DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

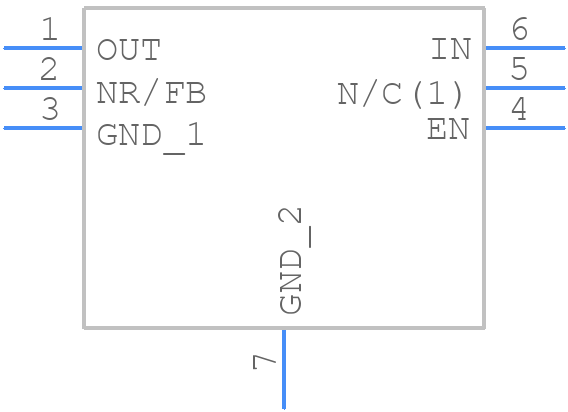

TPS71733DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS71733DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - TPS71733DRVR
click to zoom
3D Models
TPS71733DRVR - Texas Instruments - 3D model - Small Outline No-lead - TPS71733DRVR
click to zoom

TPS71733DRVR Details

  • Manufacturer Part Number:

    TPS71733DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.399 V

  • Output Voltage1-Min:

    3.201 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    2 mm

TPS71733DRVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS71733DRVR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with a value of 1-10uF is a good choice. The output capacitor should also have a low ESR and be rated for the output voltage. A ceramic capacitor with a value of 1-22uF is a good choice. The capacitor values can be adjusted based on the specific application requirements.
  • The TPS71733DRVR can handle an input voltage up to 18V, but it's recommended to operate it within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 1uF, and to place the output capacitor close to the device. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage should be monitored to ensure it's within the specified range.
  • The TPS71733DRVR has a thermal derating of 20mA/°C above 25°C, which means that the maximum output current will decrease as the temperature increases. It's recommended to ensure good airflow and to use a heat sink if necessary to keep the device temperature within the specified range.
