TPS71750QDRVRQ1 - Texas Instruments

Description: Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator for Automotive Applications

Download TPS71750QDRVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

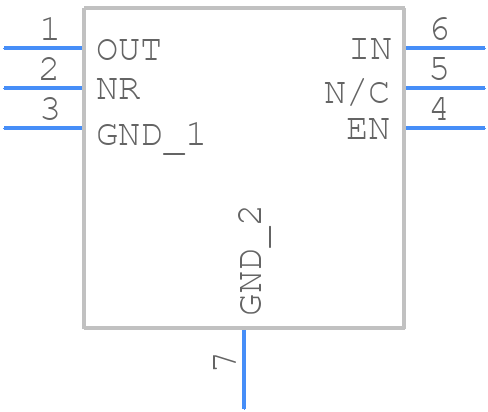

TPS71750QDRVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS71750QDRVRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006D_2020
click to zoom
3D Models
TPS71750QDRVRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRV0006D_2020
click to zoom

TPS71750QDRVRQ1 Details

  • Manufacturer Part Number:

    TPS71750QDRVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    5.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    5.15 V

  • Output Voltage1-Min:

    4.85 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    2 mm

TPS71750QDRVRQ1 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable performance.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value.
  • The minimum input capacitance required is 1uF, as specified in the datasheet. However, it's recommended to use a higher capacitance value (e.g., 4.7uF) to ensure stable operation and minimize input voltage ripple.
  • The TPS71750QDRVRQ1 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
  • The output voltage can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.2V), and R1 and R2 are the resistors used in the feedback network. Refer to the datasheet for more information on output voltage calculation.
