The maximum input voltage that can be applied to the TPS71918-28DRVT is 42V, but it's recommended to operate within the specified input voltage range of 2.7V to 36V for optimal performance and reliability.
To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor, input capacitor, and feedback resistors. Additionally, the datasheet provides a recommended compensation network that can be used to stabilize the device.
The minimum ESR required for the output capacitor in the TPS71918-28DRVT is 0.1 ohms. However, it's recommended to use an output capacitor with an ESR of 0.05 ohms or less to ensure optimal performance and stability.
The TPS71918-28DRVT is rated for operation up to 125°C, but it's essential to consider the thermal design and layout of the system to ensure that the device operates within its specified temperature range. Additionally, the device's performance and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
The power dissipation of the TPS71918-28DRVT can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The datasheet provides more information on how to calculate power dissipation and thermal design considerations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS71918-28DRVT Overview

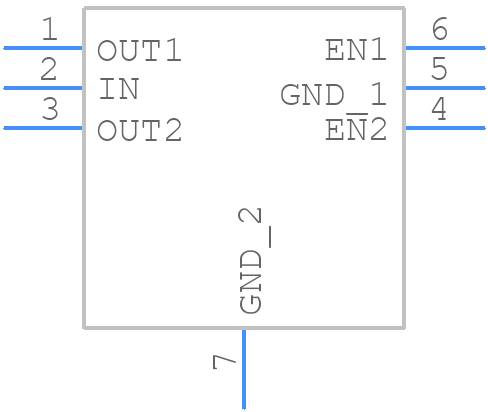

Use the download button to access the TPS71918-28DRVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS71,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
