TPS72501DCQG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS72501DCQG4 - V REG, LDO ADJ, 72501, SOT-223-6

Download TPS72501DCQG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

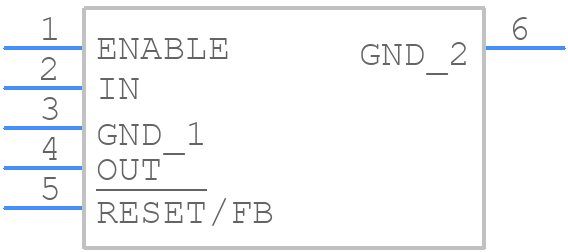

TPS72501DCQG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS72501DCQG4 - Texas Instruments PCB footprint - SOT223 (5-Pin) - SOT223 (5-Pin) - DCQ (R-PDSO-G6)
click to zoom
3D Models
TPS72501DCQG4 - Texas Instruments - 3D model - SOT223 (5-Pin) - DCQ (R-PDSO-G6)
click to zoom

TPS72501DCQG4 Details

  • Manufacturer Part Number:

    TPS72501DCQG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-223

  • Package Description:

    SOT-223, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    1 V

  • Input Voltage Absolute-Max:

    7 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOT-223-5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TPS72501DCQG4 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS72501DCQG4 is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can damage the device.
  • To ensure stability of the output voltage, it is recommended to use a minimum output capacitance of 2.2uF and a maximum ESR of 1 ohm, as specified in the datasheet. Additionally, the input capacitor should be placed close to the VIN pin to minimize noise and ensure stability.
  • The minimum input voltage required for the TPS72501DCQG4 to operate is 2.7V, as specified in the electrical characteristics section of the datasheet. However, the device can operate down to 2.5V with reduced performance.
  • The TPS72501DCQG4 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and voltage according to the thermal derating curves provided in the datasheet.
  • The power dissipation of the TPS72501DCQG4 can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + (VIN x IQ), where IQ is the quiescent current. The maximum power dissipation is limited by the thermal resistance of the package and the ambient temperature.
