Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, the output capacitor should have an ESR (Equivalent Series Resistance) within the recommended range specified in the datasheet. Additionally, the capacitor should be selected based on its voltage rating, temperature range, and physical size. It's also important to follow the recommended output capacitor values and types in the datasheet.
The maximum input voltage rating of the TPS73530QDRBRQ1 is 12V, but it's recommended to operate the device within the recommended input voltage range specified in the datasheet to ensure optimal performance and reliability.
The TPS73530QDRBRQ1 is designed to provide a stable output voltage during input voltage transients or brownouts. The device has a built-in undervoltage lockout (UVLO) feature that disables the output when the input voltage falls below a certain threshold. The device will also try to regulate the output voltage during input voltage transients, but the output voltage may droop or rise temporarily depending on the severity of the transient.
The TPS73530QDRBRQ1 is an automotive-qualified device, but it's essential to ensure that the device meets the specific requirements of the automotive application, including temperature range, voltage range, and reliability. Additionally, the device should be used within its recommended operating conditions and follow the guidelines specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS73530QDRBRQ1 Overview

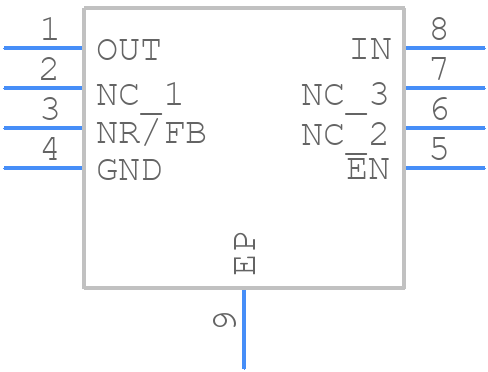

Use the download button to access the TPS73530QDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS73,
or try a keyword search, such as Linear Regulator ICs
