TPS73701DCQRG4 - Texas Instruments

Description: TPS73701DCQRG4, Low Dropout Voltage Regulator, Adjustable 1A, 1.2 → 5.5 V ±1%, 6-Pin SOT-223

Download TPS73701DCQRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

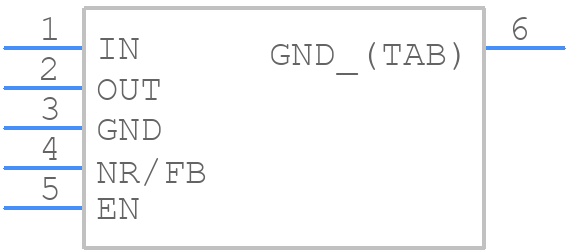

TPS73701DCQRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS73701DCQRG4 - Texas Instruments PCB footprint - SOT223 (5-Pin) - SOT223 (5-Pin) - DCQ (R-PDSO-G6)
click to zoom
3D Models
TPS73701DCQRG4 - Texas Instruments - 3D model - SOT223 (5-Pin) - DCQ (R-PDSO-G6)
click to zoom

TPS73701DCQRG4 Details

  • Manufacturer Part Number:

    TPS73701DCQRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-223

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Line Regulation-Max (%/V):

    0.01

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    5.4 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOT-223-5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.5 mm

TPS73701DCQRG4 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS73701DCQRG4 is 15V, but it's recommended to operate within the specified input voltage range of 5.5V to 12V for optimal performance.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component selection guidelines, including the use of a 10uF ceramic capacitor at the output, and a 1uF ceramic capacitor at the input. Additionally, the output voltage should be decoupled with a 10uF ceramic capacitor.
  • The minimum ESR required for the output capacitor is 0.1 ohms. It's recommended to use a low-ESR ceramic capacitor with an ESR of less than 0.1 ohms to ensure stability and optimal performance.
  • The TPS73701DCQRG4 is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the device is properly heat-sinked to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
  • The output voltage of the TPS73701DCQRG4 can be calculated using the following formula: Vout = (R1 / R2) * (Vref), where R1 and R2 are the resistors connected to the FB pin, and Vref is the internal reference voltage (1.2V).
