Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as placing the device near a thermal pad, using thermal vias, and keeping the copper pours away from the device. Additionally, TI provides a thermal calculator tool to help with thermal design.
To ensure stability, it's essential to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor.
The maximum input voltage rating for the TPS73719QDRBRQ1 is 5.5V, but it's recommended to operate the device within the specified input voltage range (2.7V to 5.5V) to ensure reliable operation and prevent damage.
The TPS73719QDRBRQ1 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal design when operating in high-temperature environments. Make sure to follow the recommended thermal design guidelines and derate the device's output current accordingly.
Start by checking the input voltage, output voltage, and enable pin (EN) to ensure they are within the specified ranges. Verify that the device is properly configured and that the output capacitor is suitable. If issues persist, consult the datasheet's troubleshooting section or contact TI's support team for further assistance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS73719QDRBRQ1 Overview

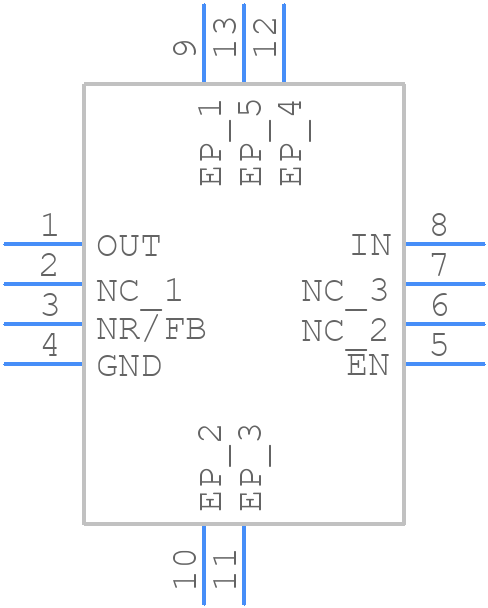

Use the download button to access the TPS73719QDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS73,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
