TPS73HD301PWPR - Texas Instruments

Description: LDO Voltage Regulators Dual-Output LDO Regulator

Download TPS73HD301PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

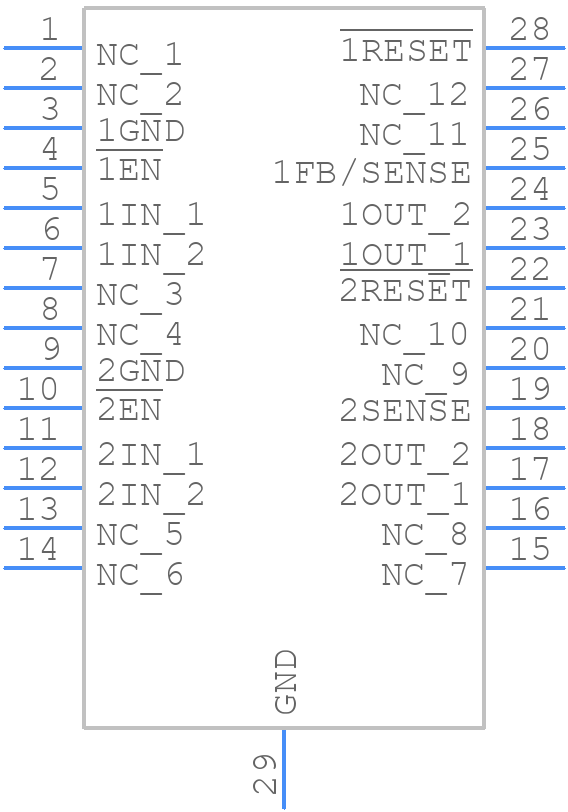

TPS73HD301PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS73HD301PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPS73HD301PWPR
click to zoom
3D Models
TPS73HD301PWPR - Texas Instruments - 3D model - Small Outline Packages - TPS73HD301PWPR
click to zoom

TPS73HD301PWPR Details

  • Manufacturer Part Number:

    TPS73HD301PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.8 V

  • Dropout Voltage1-Nom:

    0.22 V

  • Dropout Voltage2-Max:

    0.8 V

  • Input Voltage Absolute-Max:

    11 V

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    2.9 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Load Regulation-Max:

    0.037%

  • Load Regulation-Max(%):

    1.12%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    28

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.75 A

  • Output Current2-Max:

    0.75 A

  • Output Voltage1-Max:

    9.7 V

  • Output Voltage1-Min:

    1.2 V

  • Output Voltage1-Nom:

    3.3 V

  • Output Voltage2-Max:

    9.75 V

  • Output Voltage2-Min:

    1.2 V

  • Output Voltage2-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.12%

  • Width:

    4.4 mm

TPS73HD301PWPR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS73HD301PWPR is 18V, but it's recommended to operate within the recommended input voltage range of 6.5V to 14V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, as specified in the datasheet. Additionally, the input capacitor should be placed close to the input pin to minimize noise and ensure stability.
  • The TPS73HD301PWPR can deliver up to 3A of output current, but it's recommended to operate within the recommended output current range of 1A to 2A for optimal performance and reliability.
  • To handle thermal considerations, ensure that the device is mounted on a suitable heat sink, and the thermal pad is connected to a copper plane on the PCB. Additionally, follow the recommended layout and thermal design guidelines in the datasheet to minimize thermal resistance.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS73HD301PWPR Overview

Use the download button to access the TPS73HD301PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS73, or try a keyword search, such as Linear Regulator ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to TPS73HD301PWPR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TPS73HD301PWPR Alternates

Showing results

Image Part Number Model
Part Image TPS73HD301PWP Texas Instruments

Fixed/Adjustable Positive LDO Regulator, 2 Output, 1.2V1 Min, 1.2V2 Min, 9.7V1 Max, 9.75V2 Max, CMOS, PDSO28
Part Image TPS73HD301PWPRG4 Texas Instruments

Fixed/Adjustable Positive LDO Regulator, 2 Output, 3.23V1 Min, 1.2V2 Min, 3.37V1 Max, 9.75V2 Max, CMOS, PDSO28
