Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layouts, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure stability, it's recommended to use an output capacitor with a minimum equivalent series resistance (ESR) of 0.1 ohms and a minimum capacitance of 2.2 uF. Additionally, the output capacitor should be placed as close as possible to the device, and the device's output voltage should be decoupled from the input voltage using a capacitor with a value of at least 1 uF.
The maximum input voltage that can be applied to the TPS74650PQWDRBRQ1 is 13.2V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS74650PQWDRBRQ1 has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device's output voltage will decay rapidly to prevent any backflow of current into the input. It's recommended to follow a controlled power-up and power-down sequence to ensure reliable operation.
The TPS74650PQWDRBRQ1 is rated for operation up to 125°C, but it's recommended to derate the device's output current and input voltage as the temperature increases to ensure reliable operation. Additionally, the device's thermal pad should be connected to a solid ground plane to help dissipate heat.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS74650PQWDRBRQ1 Overview

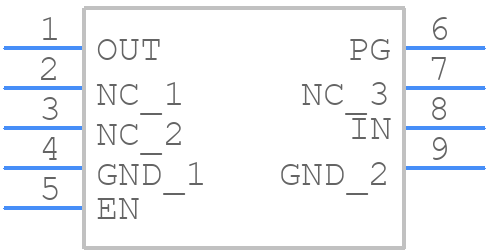

Use the download button to access the TPS74650PQWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS74,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
