TPS74701DRCT - Texas Instruments

Description: 500-mA, low-VIN (0.8-V), adjustable ultra-low-dropout voltage regulator with power good & enable

Download TPS74701DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

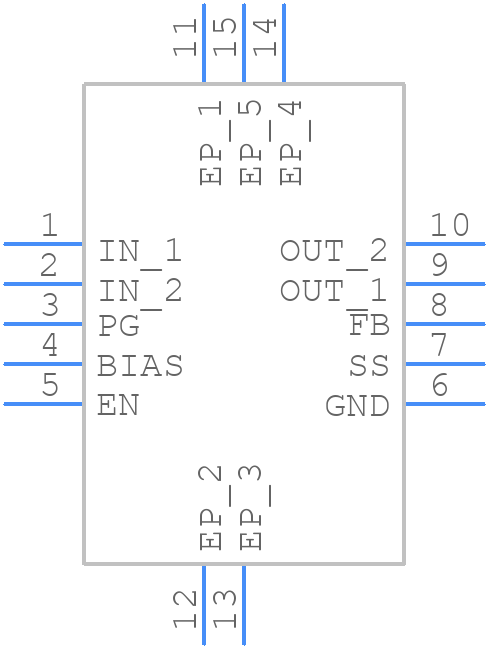

TPS74701DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS74701DRCT - Texas Instruments PCB footprint - Other - Other - TPS74701DRCT-2
click to zoom
3D Models
TPS74701DRCT - Texas Instruments - 3D model - Other - TPS74701DRCT-2
click to zoom

TPS74701DRCT Details

  • Manufacturer Part Number:

    TPS74701DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.12 V

  • Dropout Voltage1-Nom:

    0.05 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.03

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

TPS74701DRCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS74701DRCT involves placing the input and output capacitors close to the device, using a solid ground plane, and keeping the input and output traces separate to minimize noise coupling. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. For the TPS74701DRCT, TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The X5R or X7R dielectric type is recommended for their stability over temperature.
  • The TPS74701DRCT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the specific application requirements and ensure the device operates within the recommended temperature range.
  • Yes, the TPS74701DRCT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to review the device's specifications and ensure it meets the specific requirements of the application.
  • To ensure proper power-up and power-down, follow the recommended power sequencing in the datasheet. Apply the input voltage before enabling the device, and ensure the input voltage is stable before enabling the output. During power-down, disable the output before removing the input voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS74701DRCT Overview

Use the download button to access the TPS74701DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS74, or try a keyword search, such as Linear Regulator ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
