The maximum input voltage that can be applied to the TPS74801RGWTG4 is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure the TPS74801RGWTG4 is stable and does not oscillate, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, input capacitor, and resistors, as well as minimizing the distance between the device and the output capacitor.
The TPS74801RGWTG4 is a low-dropout linear regulator that can supply a minimum output current of 1mA, as specified in the datasheet. However, the device can supply higher output currents up to 1A, depending on the input voltage and output voltage requirements.
The TPS74801RGWTG4 is rated for operation up to a junction temperature of 150°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to follow the recommended operating conditions and thermal management guidelines provided in the datasheet to ensure reliable operation.
The output voltage of the TPS74801RGWTG4 can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.205V), R1 is the resistor connected between the output and the adjust pin, and R2 is the resistor connected between the adjust pin and ground.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS74801RGWTG4 Overview

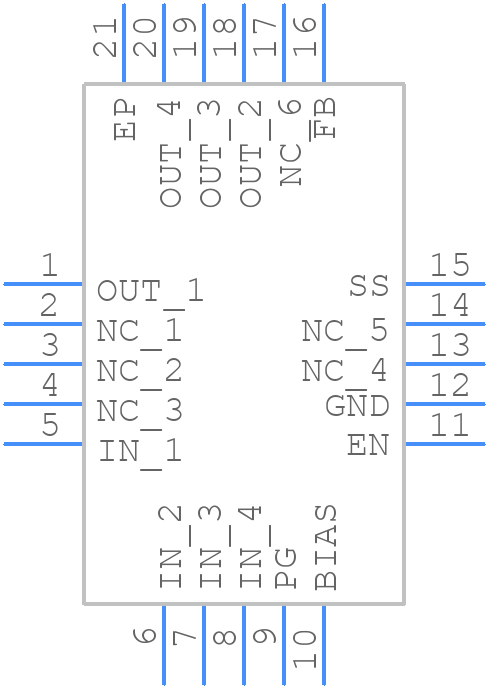

Use the download button to access the TPS74801RGWTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS74,
or try a keyword search, such as Linear Regulator ICs
