Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The TPS75100YFFT is stable with a wide range of output capacitors, but it's recommended to use a capacitor with an ESR (Equivalent Series Resistance) of 0.1 ohms or less. Additionally, the output capacitor should be placed close to the device and have a low inductance path to the device.
The maximum input voltage for the TPS75100YFFT is 13.2V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS75100YFFT has a built-in voltage transient protector that helps to regulate the output voltage during input voltage transients. However, it's still recommended to use input capacitors with a low ESR to help filter out high-frequency noise and ensure stable operation.
Yes, the TPS75100YFFT is AEC-Q100 qualified and can be used in automotive applications. However, it's recommended to follow the specific requirements and guidelines for automotive applications, such as operating temperature range, voltage transients, and electromagnetic compatibility (EMC).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS75100YFFT Overview

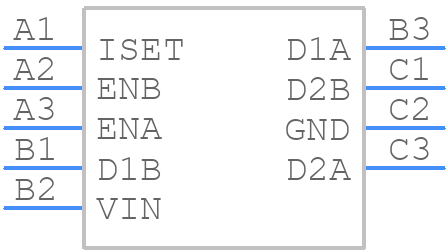

Use the download button to access the TPS75100YFFT schematic symbol, PCB footprint, and 3D model.
